U.S. Motors

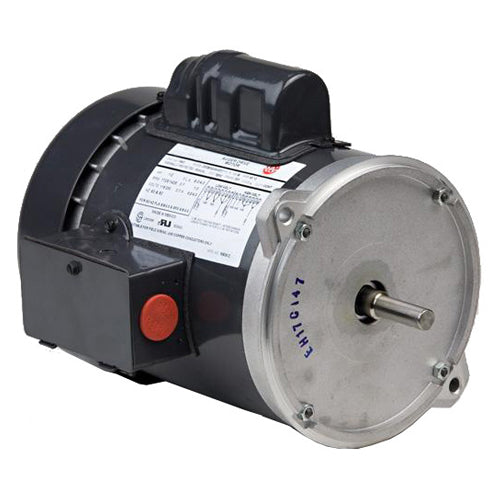

FD12SM2DZYR U.S. Motors Auger Duty Motors (1/2 HP, 208-230/460 Voltage, Three Phase Phase, 1800 RPM)
FD12SM2DZYR U.S. Motors Auger Duty Motors (1/2 HP, 208-230/460 Voltage, Three Phase Phase, 1800 RPM)
SKU:FD12SM2DZYR
Regular price
$430.31 USD
Regular price
Sale price
$430.31 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors: FD12SM2DZYR, HP: 1/2, RPM: 1800, Voltage: 208-230/460, Phase: Three Phase, Frame: 56Y, C Dim. (inches): 11.75, Full Load Amps: 12.0-2.0/1.0, Type: Auger Duty Motor,
| Applications | |
| For use on augers. | |
| Features | |
| Totally Enclosed Fan Cooled (except where noted) | Ball Bearings |
| Class B Insulation | 56Y are Keyed; 56YZ are Flat Shaft |
| Manual Reset Thermal Overload Protector | Reversible Rotation |
| 1/2 HP & Above Have ODE Shaft Extension for Hand Crank | Footed (except where noted) |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
FD12SM2DZYR |
HP |
1/2 |
RPM |
1800 |
Voltage |
208-230/460 |
Phase |
Three Phase |
Frame |
56Y |
SF |
1 |
C Dim. (inches) |
11.75 |
Full Load Amps |
12.0-2.0/1.0 |
Type |
Auger Duty Motor |
Notes |
See Product Literature |
Apx. Wt. (lbs.) |
27 |
Support Documents (pdf) | ||||
| Product Literature | ||||
