U.S. Motors

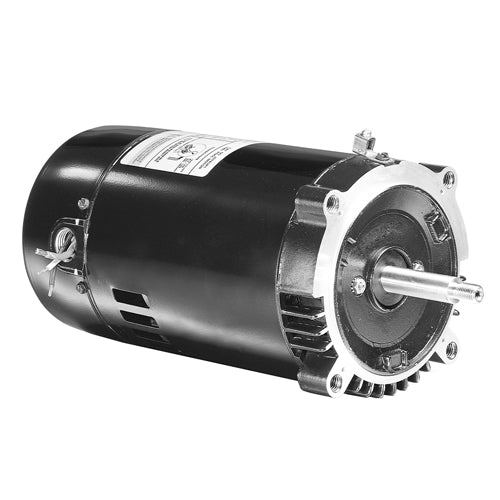

EUSQ1252 U.S. Motors Square-Flange, Switch Design, Pool and Spa Motor (2.5 HP, 48Y Frame)

EUSQ1252 U.S. Motors Square-Flange, Switch Design, Pool and Spa Motor (2.5 HP, 48Y Frame)

[COUNT] shoppers are looking at this right now

EUSQ1252

$561.63 USD
$0.00 USD $561.63 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson EUSQ1252 RPM: 3450, Volts: 230, Jacuzzi Bros. and Pentair Replacement , 5.5" Diameter, Category "S", A.O. Smith : USQ1252, A.O. Smith Century: B840, Franklin: 13280, Marathon : C1335, :
Applications:

Replace Square-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Aqua Flow, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC...

Features:
Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 1/2-20 UNF-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only)
Specifications:
Model Number EUSQ1252
List Price 513
HP 2.5
RPM 3450
Volts 230
SF Amps 10.4
Shaft
Frame 48Y
Efficiency Standard Efficiency
Length Less Shaft 12.78
Shaft Threads 1/2-20UNF-2A
Freq 60
Enclosure Open Dripproof
A.O. Smith Replacement USQ1252
A.O. Smith/Century Replacement B840
Franklin Replacement 13280
Marathon Replacement C1335
Insulation Class B
Weight (lbs.) 31
Notes Low Service Factor, Up Rated
