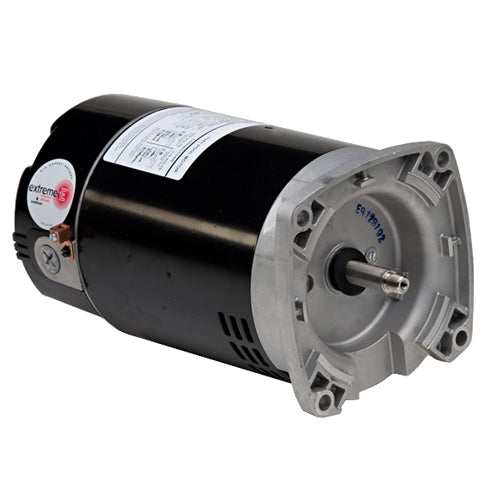

ET3220 U.S. Motors Square Flange Pool and Spa Motor (2 HP, 56Y Frame)
ET3220 U.S. Motors Square Flange Pool and Spa Motor (2 HP, 56Y Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:ET3220
Regular price
$545.15 USD
Regular price
$0.00 USD
Sale price
$545.15 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Model Number : ET3220, HP: 2, RPM: 3450, Volts: 208-230, Frame: 56Y, SF Amps: 11.8-11.0, Hayward Tristar Replacement , 6.5" Diameter, Emerson 56 Category "T"
| Applications: |
Replace Square Flange Pool and Spa Pump Motors. |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 1/2-20 UNF-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5 Diameter Frame |
Specifications: |
|
| Model Number | ET3220 |
| List Price | 572 |
| HP | 2 |
| RPM | 3450 |
| Volts | 208-230 |
| SF Amps | 11.8-11.0 |
| Shaft Threads | 1/2-20 UNF-2A |
| Frame | 56Y |
| Efficiency | |
| Shaft | 307 Stainless Steal Shaft |
| Motor Type | |
| Bearings | Sealed Ball Bearings |
| Enclosure | Open Dripproof |
| Base | |
| "C" Dim. | |
| Phase | |
| Overload Protector | |
| Insulation Class | B |
| Weight (lbs.) | 35 |
| Notes |
