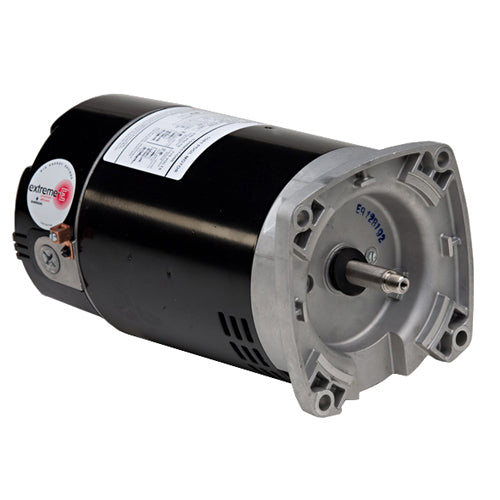

ET3205 U.S. Motors Square Flange Pool and Spa Motor (1/2 HP, 56Y Frame)
ET3205 U.S. Motors Square Flange Pool and Spa Motor (1/2 HP, 56Y Frame)
SKU:ET3205
Regular price
$282.77 USD
Regular price
Sale price
$282.77 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Model Number : ET3205, HP: 1/2, RPM: 3450, Volts: 208-230/115, Frame: 56Y, SF Amps: 5.3-4.9/9.8, Hayward Tristar Replacement , 6.5" Diameter, Emerson 56 Category "T"
| Applications: |
Replace Square Flange Pool and Spa Pump Motors. |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 1/2-20 UNF-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5 Diameter Frame |
Specifications: |
|
| Model Number | ET3205 |
| List Price | 298 |
| HP | 1/2 |
| RPM | 3450 |
| Volts | 208-230/115 |
| SF Amps | 5.3-4.9/9.8 |
| Shaft Threads | 1/2-20 UNF-2A |
| Frame | 56Y |
| Efficiency | |
| Shaft | 303 Stainless Steal Shaft |
| Motor Type | |
| Bearings | Sealed Ball Bearings |
| Enclosure | Open Dripproof |
| Base | |
| "C" Dim. | |
| Phase | |
| Overload Protector | |
| Insulation Class | B |
| Weight (lbs.) | 24 |
| Notes |
