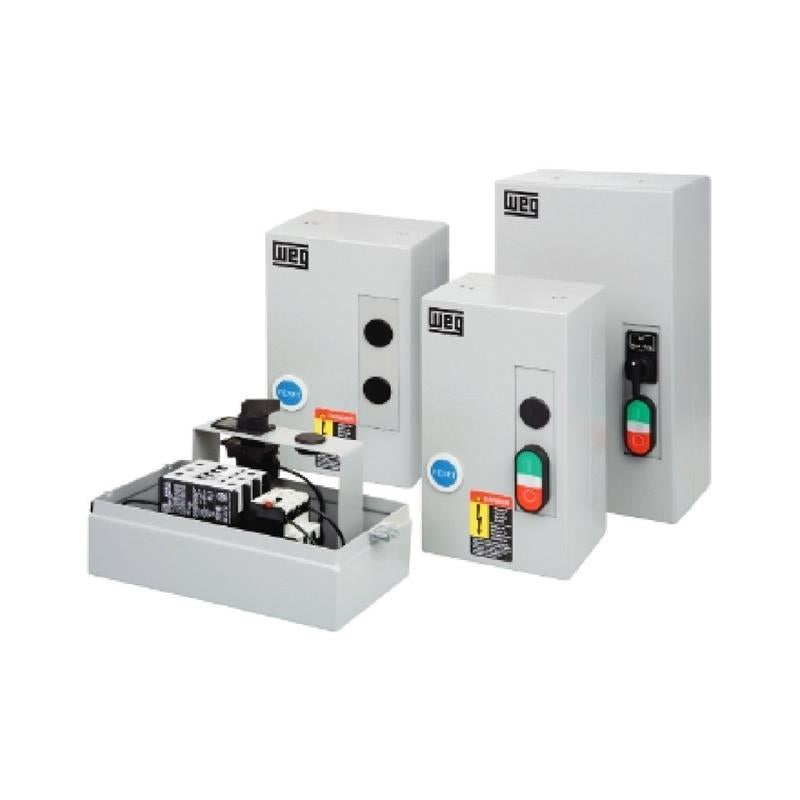

ESW-B32V24C-R34 WEG Enclosed Starter

WEG enclosed starters series were designed to meet the requirements and flexibility frequently demanded in industrial applications. Featuring components that meet IEC design standards and UL horsepower ratings, WEG enclosed starters are UL508A approved and cULus certified. This means your panels will fulfill the rigorous requirements of UL508A and will have the quality and performance as for all WEG products.

Start Type Direct Three-phase
Maximum Power Rating Not applicable
Control voltage 180-208V50HZ/208-240V60HZ
Control devices C-Commutator On-Off+Reset
Degree of protection TYPE1
Starters Complements Does Not Contain
Rated current (AC-3) 32A (CWB32)
Overload relay 22-32 A (RW27)
Measuring tool and accessories Not Applicable
Button type Unspecified
Button color Not Specified
Connection Type Not Applicable
