U.S. Motors

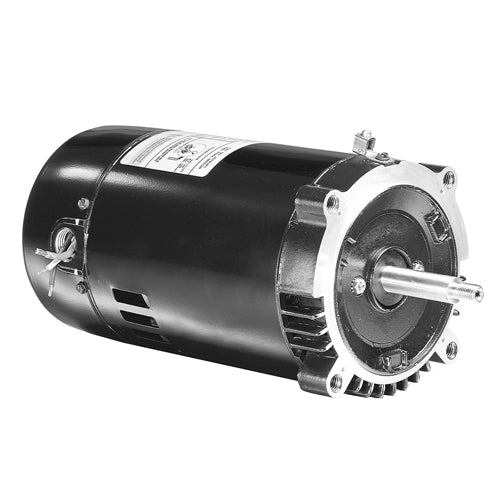

ESQ1152 U.S. Motors Square-Flange, Switch Design, Pool and Spa Motor (1.5 HP, 48Y Frame)
ESQ1152 U.S. Motors Square-Flange, Switch Design, Pool and Spa Motor (1.5 HP, 48Y Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:ESQ1152
Regular price
$401.17 USD
Regular price
$0.00 USD
Sale price
$401.17 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson ESQ1152 RPM: 3450, Volts: 230/115, Jacuzzi Bros. and Pentair Replacement , 5.5" Diameter, Category "S", A.O. Smith : SQ1152, A.O. Smith Century: B858, Franklin: 14728, Marathon : C1307, :
| Applications: |
Replace Square-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Aqua Flow, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC... |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 1/2-20 UNF-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) |
Specifications: |
|
| Model Number | ESQ1152 |
| List Price | 415 |
| HP | 1.5 |
| RPM | 3450 |
| Volts | 230/115 |
| SF Amps | 9.7/19.4 |
| Shaft | |
| Frame | 48Y |
| Efficiency | Standard Efficiency |
| Length Less Shaft | 12.53 |
| Shaft Threads | 1/2-20UNF-2A |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | SQ1152 |
| A.O. Smith/Century Replacement | B858 |
| Franklin Replacement | 14728 |
| Marathon Replacement | C1307 |
| Insulation Class | B |
| Weight (lbs.) | 29 |
| Notes | Full Service Factor, Full Rated |
