U.S. Motors

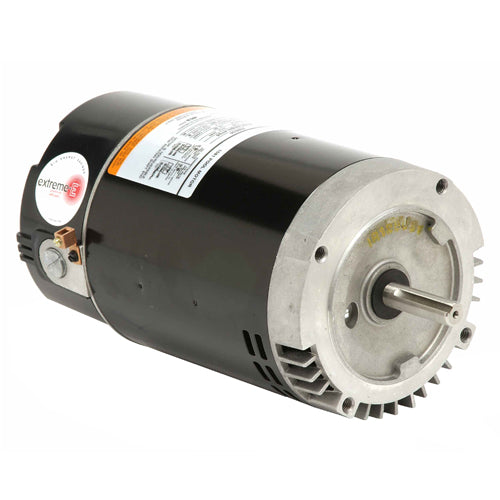

ESN1202 U.S. Motors C-Flange Pool and Spa Motor (2 HP, 56J Frame)
ESN1202 U.S. Motors C-Flange Pool and Spa Motor (2 HP, 56J Frame)
SKU:ESN1202
Regular price
$502.17 USD
Regular price
Sale price
$502.17 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson ESN1202 RPM: 3450, Volts: 208-230, Hayward Northstar Replacement , 6.5" Diameter, Category "N", Enclosure : Open Dripproof, A.O. Smith Century: SN1202, Freq: 60, Marathon :
| Applications: |
Replace C-Flange Pool and Spa Pump Motors, Replaces: Hayward Northstar Motor. |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 1/2-20 UNF-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 60C Ambient Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5 Diameter Frame |
Specifications: |
|
| Model Number | ESN1202 |
| List Price | 575 |
| HP | 2 |
| RPM | 3450 |
| Volts | 208-230 |
| SF Amps | 13.0-11.8 |
| Shaft | |
| Frame | 56J |
| Efficiency | Premium Efficiency |
| Length Less Shaft | 11.77 |
| Shaft Threads | 1/2-20UNF-2A |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | 0 |
| A.O. Smith/Century Replacement | SN1202 |
| Franklin Replacement | 0 |
| Marathon Replacement | 0 |
| Insulation Class | B |
| Weight (lbs.) | 35 |
| Notes | Full Service Factor, Full Rated |
