Baldor

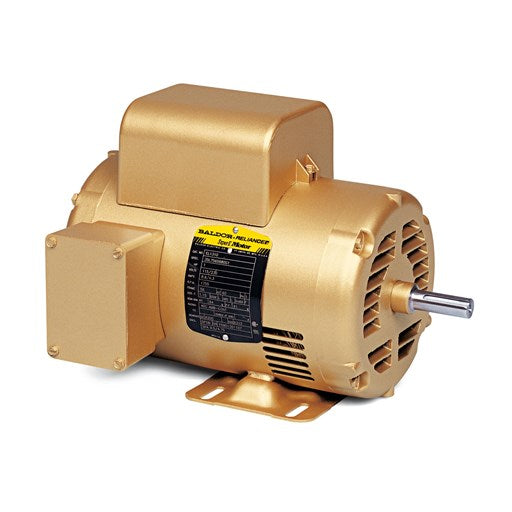

EL11308 Baldor (.75HP,1140RPM,1PH,60HZ,56H,3530LC,OPEN,F)
EL11308 Baldor (.75HP,1140RPM,1PH,60HZ,56H,3530LC,OPEN,F)
No reviews
SKU:EL11308
Regular price
$900.94 USD
Regular price
Sale price
$900.94 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
EL11308 Baldor (.75HP,1140RPM,1PH,60HZ,56H,3530LC,OPEN,F)
Catalog Number - EL11308
Enclosure - OPEN
Frame - 56H
Frame Material- Steel
Frequency - 60.00 Hz
Output @ Frequency.750 HP @ 60 HZ
Phase - 1
Synchronous Speed @ Frequency - 1200 RPM @ 60 HZ
Voltage @ Frequency115.0 V @ 60 HZ
208.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group - None
XP Division - Not Applicable
Agency Approvals UR
CSA
CSA
Ambient Temperature - 40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead Termination - None
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Blower - None
Current @ Voltage 3.100 A @ 230.0 V
3.500 A @ 208.0 V
6.200 A @ 115.0 V
3.500 A @ 208.0 V
6.200 A @ 115.0 V
Design Code L
Drip Cover - No Drip Cover
Duty Rating- CONT
Efficiency @ 100% Load - 80.2 %
Electrically Isolated Bearing - Not Electrically Isolated
Feedback Device - NO FEEDBACK
Front Face Code Standard
Front Shaft Indicator - None
Heater Indicator - No Heater
High Voltage Full Load Amps - 3.1 a
Insulation Class F
Inverter Code - Not Inverter
KVA Code G
Lifting Lugs - No Lifting Lugs
Locked Bearing Indicator - No Locked Bearing
Motor Lead Exit Ko Box
Motor Lead Quantity/Wire Size6 @ 18 AWG
Motor Lead Termination Flying Leads
Motor Standards NEMA
Motor Type 3530LC
Mounting Arrangement F1
Number of Poles - 6
Overall Length12.62 IN
Power Factor 99
Product Family General Purpose
Pulley End Bearing TypeBall
Pulley Face CodeStandard
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor - 1.00
Shaft Diameter - 0.625 IN
Shaft Extension Location Pulley End
Shaft Ground Indicator - No Shaft Grounding
Shaft Rotation - Reversible
Shaft Slinger Indicator - No Slinger
Speed - 1140 rpm
Speed Code - Single Speed
Starting Method - Direct on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor Indicator - No Vibration Sensor
Winding Thermal 1 - None
Winding Thermal 2 - None
