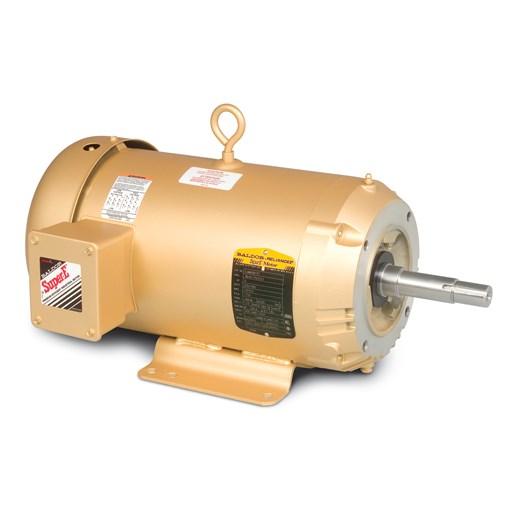

EJMM3616T ABB Baldor Close-Coupled Pump Motor (7.5HP,3450RPM,3PH,60HZ,184JM,3646M,TEFC)

EJMM3616T ABB Baldor Close-Coupled Pump Motor (7.5HP,3450RPM,3PH,60HZ,184JM,3646M,TEFC)

👁️ [COUNT] People are currently viewing this product.

EJMM3616T

$1,647.18 USD
$2,292.00 USD $1,647.18 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

EJMM3616T ABB Baldor Close-Coupled Pump Motor (7.5HP,3450RPM,3PH,60HZ,184JM,3646M,TEFC)

Catalog NumberEJMM3616T
Enclosure TEFC
Frame184JM
Frame Material Steel
Frequency60.00 Hz
Output @ Frequency7.500 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency3600 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group None
XP Division Not Applicable
Agency Approvals UR
CSA EEV
CSA
Ambient Temperature40 °C
Auxillary Box No Auxillary Box
Auxillary Box Lead Termination None
Base Indicator Rigid
Bearing Grease Type Polyrex EM (-20F +300F)
BlowerNone
Current @ Voltage16.800 A @ 230.0 V
18.500 A @ 208.0 V
8.400 A @ 460.0 V
Design CodeA
Drip CoverNo Drip Cover
Duty Rating CONT
Efficiency @ 100% Load89.5 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEED BACK
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
High Voltage Full Load Amps8.4 a
Insulation ClassF
Inverter CodeInverter Ready
KVA CodeL
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKo Box
Motor Lead Quantity/Wire Size9 @ 16 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type3646M
Mounting ArrangementF1
Number of Poles2
Overall Length19.56 IN
Power Factor93
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorTapped & Key
Rodent ScreenNone
Service Factor1.15
Shaft Diameter0.875 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed3450 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None
