U.S. Motors

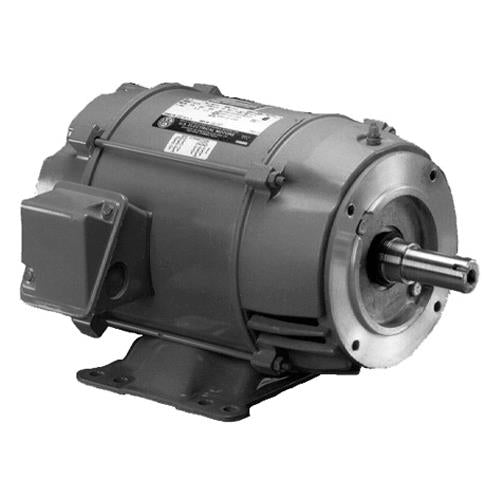

EE736 U.S. Motors General Purpose Motor (3 HP, 56C Frame, Three Phase, 3600 RPM)

EE736 U.S. Motors General Purpose Motor (3 HP, 56C Frame, Three Phase, 3600 RPM)

EE736

$624.85 USD
$624.85 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson EE736, HP: 3, RPM: 3600, Volts: 208-230/460, Motor Mount: Footless, Frame: 56C, SF: 1.15, Phase: Three, Enclosure: ODP, Fans, Compressors, Pumps

Applications
For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.
Features
Class F Insulation, Class B Rise at Service Factor (140 Frame & Larger), Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End, "CE" Mark on Nameplate (140 Frame & Larger), Full 50 & 60 Hertz Operating Data on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz SineWave Power, Full HP @ 50 Hz, Regreasable Bearings 250 Frame & Up, Double Shielded Bearings 48-400, Bearing Cap On 440 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, F1 Assembly Position, Lifting Provisions 210 Frame & Up

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial C-Face Motor
Model Number
EE736
HP
3
RPM
3600
Volts
208-230/460
Motor Mount
Footless
Frame
56C
Full Load Amps
7.9-7.6/3.8
Full Load Efficiency
-
Apx. Wt. (lb)
35
SF
1.15
Phase
Three
Length
12.9
Enclosure
ODP
Type
General Purpose Industrial C-Face Motor
