U.S. Motors

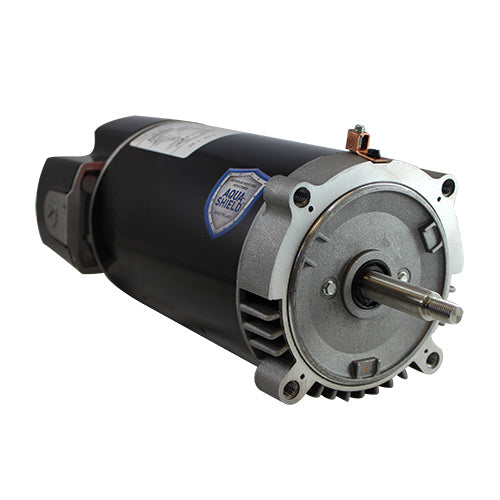

ECT1072 U.S. Motors C-Flange, Switch Design, Pool and Spa Motors (3/4 HP, 56J Frame)
ECT1072 U.S. Motors C-Flange, Switch Design, Pool and Spa Motors (3/4 HP, 56J Frame)
SKU:ECT1072
Regular price
$283.33 USD
Regular price
$321.00 USD
Sale price
$283.33 USD
Unit price
/
per
Shipping calculated at checkout.
Obsolete item. Replaced by ACT125
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
US Motors Emerson ECT1072 RPM: 3450, Volts: 230/115, Jacuzzi Bros. and Hayward Replacement , 5.5" Diameter, Category "J", A.O. Smith : CT1072, A.O. Smith Century: , Franklin: 52009, Marathon : C1437, :
| Applications: |
|
Replace Square-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Hayward, Aqua Flow, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC... |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 7/16-20 UNF-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) |
|
Specifications:
|
|
| Model Number | ECT1072 |
| List Price | 321 |
| HP | 3/4 |
| RPM | 3450 |
| Volts | 230/115 |
| SF Amps | 5.5/11.0 |
| SF | 1.5 |
| Frame | 56J |
| Efficiency | High Efficiency |
| Length Less Shaft | 9.84 |
| Shaft Threads | 1/2-20UNF-2A |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | CT1072 |
| A.O. Smith/Century Replacement | 0 |
| Franklin Replacement | 52009 |
| Marathon Replacement | C1437 |
| Insulation Class | B |
| Weight (lbs.) | 22 |
| Notes | Full Service Factor, Full Rated |
