U.S. Motors

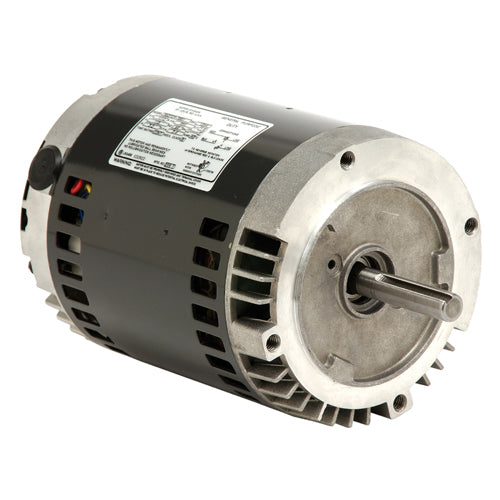

EC3002 U.S. Motors General Purpose Motor ( 3 HP, 56C Frame, 3600 RPM)
EC3002 U.S. Motors General Purpose Motor ( 3 HP, 56C Frame, 3600 RPM)
No reviews
SKU:EC3002
Regular price
$564.38 USD
Regular price
Sale price
$564.38 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson EC3002, HP: 3, RPM: 3600, Volts: 208-230, Frame: 56C, "C" Dim. : 12.9, Speed: Single , Motor Mount : Footless, Enclosure: ODP, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. |
| Features |
| Double Shielded Ball Bearings Locked Drive End Bearings; 50/60 Hz Motors Have 1.0 SF on 50 Hz; Class B Insulation; Continuous Duty; 40C Ambient; F1 Assembly; Reversible Rotation |
Tech Specs. | |
Brand |
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor |
Model Number |
EC3002 |
HP |
3 |
RPM |
3600 |
Volts |
208-230 |
SF |
1.15 |
Frame |
56C |
Full Load Amps |
14.0-12.8 |
"C" Dim. |
12.9 |
Apx. Wt. (lb) |
37 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footless |
Enclosure |
ODP |
Type |
General Purpose Single Phase C-Face Motor |
Rotation |
Reversible |
Notes |
Capacitor Start |
