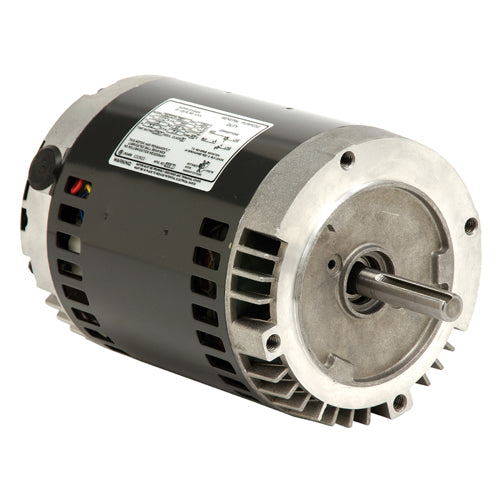

EC1502 U.S. Motors General Purpose Motor (1 1/2 HP, 56C Frame, 3600 RPM)
EC1502 U.S. Motors General Purpose Motor (1 1/2 HP, 56C Frame, 3600 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:EC1502
Regular price
$393.01 USD
Regular price
Sale price
$393.01 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson EC1502, HP: 1 1/2, RPM: 3600, Volts: 115/208-230, Frame: 56C, "C" Dim. : 12.4, Speed: Single , Motor Mount : Footless, Enclosure: ODP, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. |
| Features |
| Double Shielded Ball Bearings Locked Drive End Bearings; 50/60 Hz Motors Have 1.0 SF on 50 Hz; Class B Insulation; Continuous Duty; 40C Ambient; F1 Assembly; Reversible Rotation |
Tech Specs. | |
Brand |
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor |
Model Number |
EC1502 |
HP |
1 1/2 |
RPM |
3600 |
Volts |
115/208-230 |
SF |
1.3 |
Frame |
56C |
Full Load Amps |
18.2/9.2-9.1 |
"C" Dim. |
12.4 |
Apx. Wt. (lb) |
30 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footless |
Enclosure |
ODP |
Type |
General Purpose Single Phase C-Face Motor |
Rotation |
Reversible |
Notes |
Capacitor Start |
