U.S. Motors

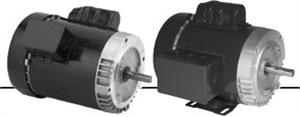

EC11B U.S. Motors General Purpose Motor (1 1/2 HP, 56C Frame, 3600 RPM)
EC11B U.S. Motors General Purpose Motor (1 1/2 HP, 56C Frame, 3600 RPM)
SKU:EC11B
Regular price
$598.93 USD
Regular price
Sale price
$598.93 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson EC11B, HP: 1 1/2, RPM: 3600, Volts: 115/208-230, Frame: 56C, "C" Dim. : 12.6, Speed: Single , Motor Mount : Footed, Enclosure: TEFC, Notes: Capacitor Start , Blowers, pumps
| Applications |
| For use on air compressors, commercial duty pumps, conveyors, blowers and general industrial equipment. |
| Features |
| Double Shielded Ball Bearings; Class B Insulation; Continuous Duty; 40C Ambient; Capacitor Start; Induction Run; F1 Assembly; Reversible Rotation; 50/60 Hz Motors Have 1.0 S.F. on 50 Hz |
Tech Specs. | |
Brand |
U.S. Motors/Emerson General Purpose Single Phase C-Face Motor |
Model Number |
EC11B |
HP |
1 1/2 |
RPM |
3600 |
Volts |
115/208-230 |
SF |
1.15 |
Frame |
56C |
Full Load Amps |
16.6/9.0-8.3 |
"C" Dim. |
12.6 |
Apx. Wt. (lb) |
36 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footed |
Enclosure |
TEFC |
Type |
General Purpose Single Phase C-Face Motor |
Rotation |
Reversible |
Notes |
Capacitor Start |
