U.S. Motors

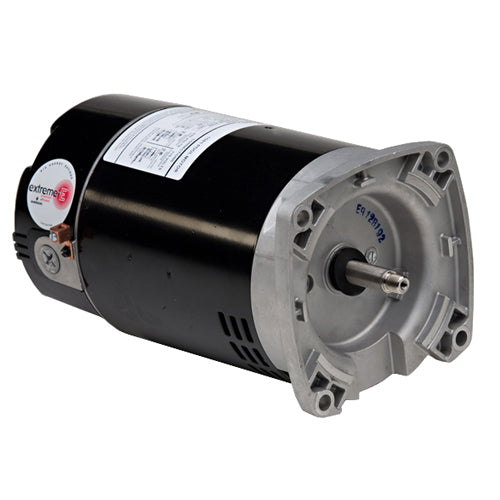

EB981 U.S. Motors Square Flange Pool and Spa Motor (3/4/.12 THP, 3450/1725 RPM, 115 Voltage)

EB981 U.S. Motors Square Flange Pool and Spa Motor (3/4/.12 THP, 3450/1725 RPM, 115 Voltage)

[COUNT] shoppers are looking at this right now

EB981

$427.19 USD
$0.00 USD $427.19 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors EB981, Square Flange Pool and Spa Motors Type, 3/4/.12 THP, 3450/1725 RPM, 115 Voltage,

Applications
Optimized internal airflow design minimizes heat and moisture buildup inside the motor. Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor. Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger.
Features
Two Compartment
1081 Design
Open Dripproof
300 Series Stainless Steel Shaft
Shaft Threads - 1/2-20 UNF-2A
Voltage Selection Device (Dual Voltage Only)
Continuous Duty
Class B Insulated
Thermally Protected
50C Ambient
THP Rated

Specifications

Brand
U.S. Motors
Catalog Number
EB981
Type
Square Flange Pool and Spa Motors
Catalog Number
EB981
THP
3/4/.12
Description
Premium Energy Efficient, Two Speed, Total Horsepower Rated, Soft Start, Switch Design
RPM
3450/1725
Voltage
115
Freq
60
THP Amps
14.5/5.3
Motor Frame
56Y
Length Less Shaft
12.3
Approx. Weight
30
Category
S
Frame Diameter
6.5"
Design
Switchless
Enclosure
ODP
Material
300 Series Stainless Steel
Discount symbol
DS-FPS
Notes
See Support Documents

Support Documents (pdf)
