U.S. Motors

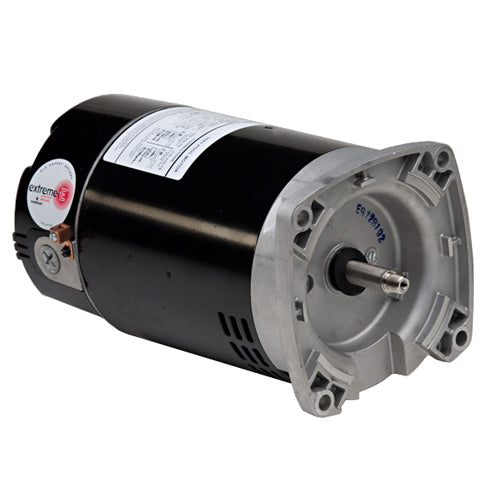

EB980 U.S. Motors Square Flange Pool and Spa Motor (3/4 HP, 56Y Frame)
EB980 U.S. Motors Square Flange Pool and Spa Motor (3/4 HP, 56Y Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:EB980
Regular price
$403.00 USD
Regular price
Sale price
$403.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson EB980 RPM: 3450/1725, Volts: 230, Jacuzzi Bros. Cygnet Replacement , Switchless 6.5" Diameter, Category "S"A.O. Smith - SQS1072R, A.O. Smith Century - B980, Franklin - 12071, Marathon - C1310
| Applications: |
Replace Square Flange Pool and Spa Pump Motors, Jacuzzi Bros. Cygnet Replacement . |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Shaft Threads 1/2-20 UNC-2A Continuous Duty Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5 Diameter Frame |
Specifications: |
|
| Model Number | EB980 |
| List Price | 446 |
| HP | 3/4 / .12 |
| RPM | 3450/1725 |
| Volts | 230 |
| SF Amps | 6.2/2.4 |
| Shaft Threads | 1/2-20 UNF-2A |
| Frame | 56Y |
| Efficiency | Standard Efficiency |
| Shaft | 310 Stainless Steal Shaft |
| Motor Type | |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | SQS1072R |
| A.O. Smith/Century Replacement | B980 |
| Franklin Replacement | 12071 |
| Marathon Replacement | C1310 |
| Insulation Class | B |
| Weight (lbs.) | 30 |
| Notes | Full Service Factor, Up-Rated |
