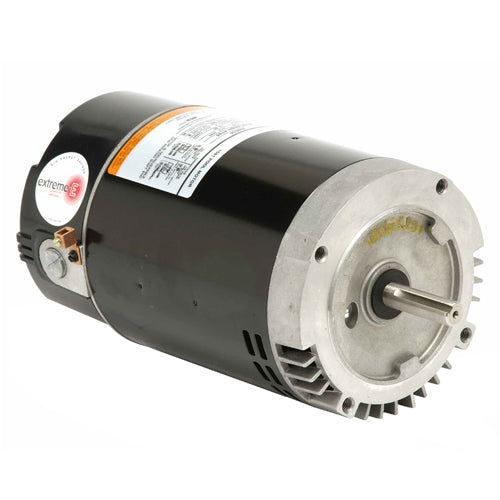

EB976 U.S. Motors C-Flange Pool and Spa Motor (1.5 HP, 56C Frame)
EB976 U.S. Motors C-Flange Pool and Spa Motor (1.5 HP, 56C Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:EB976
Regular price
$476.08 USD
Regular price
Sale price
$476.08 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson EB976 RPM: 3450/1725, Volts: 230, Jacuzzi Bros. and Hayward Replacement , 6.5" Diameter, Category "C" and "J" , A.O. Smith : SKS1152, A.O. Smith Century: B976, Franklin: 19078, Marathon : C1107, :
| Applications: |
Replace C-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Hayward, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC... |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Continuous Duty Shaft Threads 7/16-20 UNF-2A Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5 Diameter Frame |
Specifications: |
|
| Model Number | EB976 |
| List Price | 517 |
| HP | 1.5 |
| RPM | 3450/1725 |
| Volts | 230 |
| SF Amps | 9.4/3.0 |
| Shaft | Keyed |
| Frame | 56C |
| Efficiency | Premium Efficiency |
| Length Less Shaft | 11.77 |
| Shaft Threads | 7/16-20UNF-2A |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | SKS1152 |
| A.O. Smith/Century Replacement | B976 |
| Franklin Replacement | 19078 |
| Marathon Replacement | C1107 |
| Insulation Class | B |
| Weight (lbs.) | 40 |
| Notes | Two Speed, Full Service Factor, Up-Rated |
