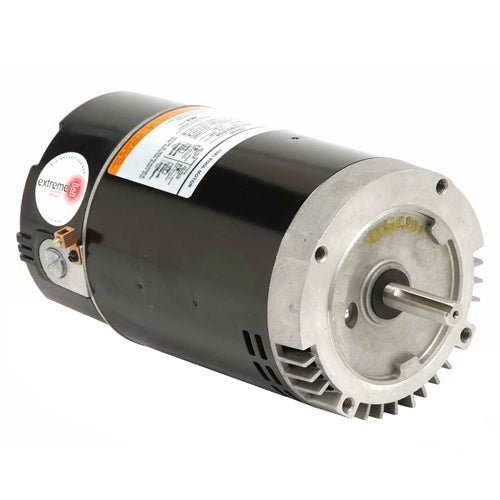

EB653 U.S. Motors C-Flange Pool and Spa Motor (1 HP, 56C Frame)
EB653 U.S. Motors C-Flange Pool and Spa Motor (1 HP, 56C Frame)
SKU:EB653
Regular price
$349.91 USD
Regular price
Sale price
$349.91 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson EB653 RPM: 3450, Volts: 208-230/115, Jacuzzi Bros. and Hayward Replacement , 6.5" Diameter, Category "C" and "J" , A.O. Smith : CK1102, A.O. Smith Century: B653, Franklin: 52005, Marathon : C1487, :
| Applications: |
Replace C-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Hayward, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC... |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Continuous Duty Shaft Threads 7/16-20 UNF-2A Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5 Diameter Frame |
Specifications: |
|
| Model Number | EB653 |
| List Price | 370 |
| HP | 1 |
| RPM | 3450 |
| Volts | 208-230/115 |
| SF Amps | 6.2-5.8/11.6 |
| Shaft | Keyed |
| Frame | 56C |
| Efficiency | Premium Efficiency |
| Length Less Shaft | 11.02 |
| Shaft Threads | 7/16-20UNF-2A |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | CK1102 |
| A.O. Smith/Century Replacement | B653 |
| Franklin Replacement | 52005 |
| Marathon Replacement | C1487 |
| Insulation Class | B |
| Weight (lbs.) | 29 |
| Notes | Full Service Factor, Full Rated |
