U.S. Motors

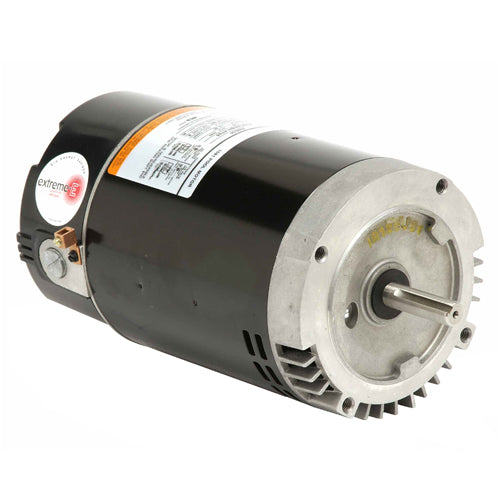

EB231 U.S. Motors C-Flange Pool and Spa Motor (2.5 HP, 56J Frame)
EB231 U.S. Motors C-Flange Pool and Spa Motor (2.5 HP, 56J Frame)
[COUNT] shoppers are looking at this right now
No reviews
SKU:EB231
Regular price
$472.87 USD
Regular price
$0.00 USD
Sale price
$472.87 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson EB231 RPM: 3450, Volts: 230, Jacuzzi Bros. and Hayward Replacement , 6.5" Diameter, Category "C" and "J" , A.O. Smith : UST1252, A.O. Smith Century: B231SE, Franklin: , Marathon : C1149, :
| Applications: |
Replace C-Flange Pool and Spa Pump Motors, Replaces: Jacuzzi Bros., Hayward, Baker Hydro, Astral, ITT Marlow, Pentair/Pac Fab, Pentair/Purex/Hydrotech, Springwater, Speck Pumps, WMC... |
| Features: |
| Two Compartment 1081 Design Open Dripproof 303 Stainless Steel Shaft Triple Bearing Protection Continuous Duty Shaft Threads 7/16-20 UNF-2A Sealed Ball Bearings Thermally Protected Class B Insulated 50C Ambient Voltage Selection Device (Dual Voltage Only) Switchless Design 6.5 Diameter Frame |
Specifications: |
|
| Model Number | EB231 |
| List Price | 487 |
| HP | 2.5 |
| RPM | 3450 |
| Volts | 230 |
| SF Amps | 10.5 |
| Shaft | Threaded |
| Frame | 56J |
| Efficiency | Standard Efficiency |
| Length Less Shaft | 11.77 |
| Shaft Threads | 7/16-20UNF-2A |
| Freq | 60 |
| Enclosure | Open Dripproof |
| A.O. Smith Replacement | UST1252 |
| A.O. Smith/Century Replacement | B231SE |
| Franklin Replacement | |
| Marathon Replacement | C1149 |
| Insulation Class | B |
| Weight (lbs.) | 33 |
| Notes | Full Service Factor, Full Rated |
