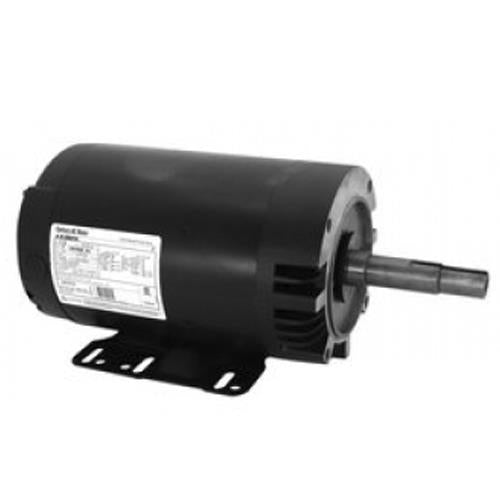

E296 Century Close-Coupled Pump Motors - Rigid Base (5 HP, 182JM Frame)
E296 Century Close-Coupled Pump Motors - Rigid Base (5 HP, 182JM Frame)
No reviews
SKU:E296
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Century Motor E296, HP: 5, RPM: 3600, Volts: 208-230/460, Frame: 182JM, Ref #:
Specifications: |
|
| Model Number | E296 |
| Cross Reference Number | |
| HP | 5 |
| RPM | 3600 |
| Volts | 208-230/460 |
| Max Amps | 13.4-13.2/6.6 |
| Service Factor | 1.15 |
| Frame | 182JM |
| Efficiency | 86.5 |
| Shaft | |
| Motor Type | |
| Bearings | Ball Bearings |
| Enclosure | Dripproof |
| Base | Rigid |
| "C" Dim. | 17.12 |
| Phase | 3 |
| Overload Protector | |
| Insulation Class | B |
| Rotation | |
| Notes | Oversized, Locked Shaft End Bearing |
