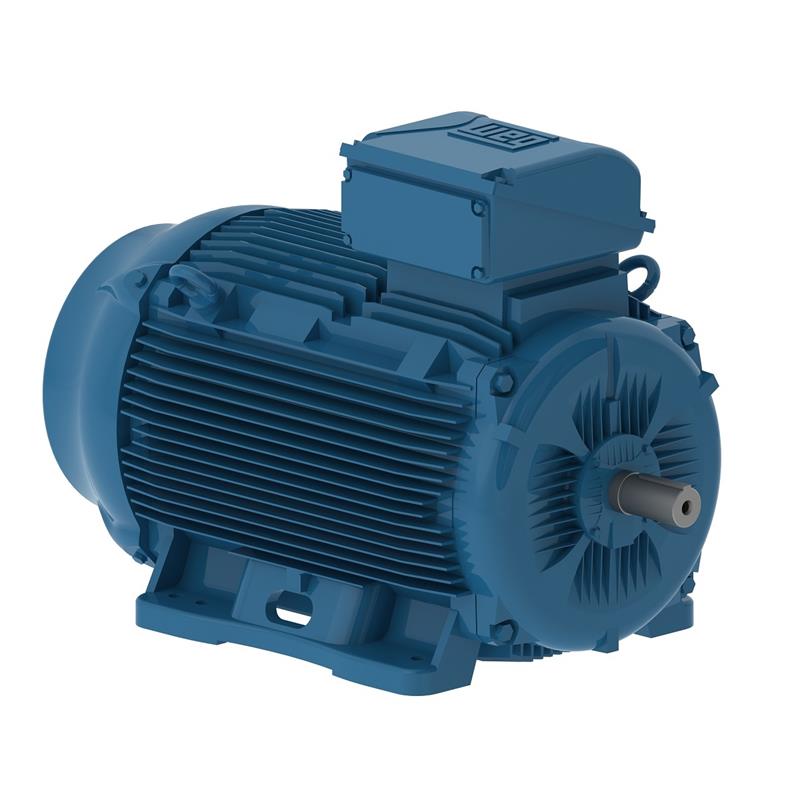

E15036EP3YAX315SMF3W WEG Motor (200 HP, 3000 RPM, 3 Phase, 315S/M Frame, TEFC Enclosure, 220-240/380-415//440-460 Voltage)
E15036EP3YAX315SMF3W WEG Motor (200 HP, 3000 RPM, 3 Phase, 315S/M Frame, TEFC Enclosure, 220-240/380-415//440-460 Voltage)
SKU:E15036EP3YAX315SMF3W
Regular price
$22,853.60 USD
Regular price
Sale price
$22,853.60 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG E15036EP3YAX315SMF3W, 200 HP, 150 KW, 3000 RPM, 3 Phase, 315S/M Frame, TEFC Enclosure, 220-240/380-415//440-460 Voltage
| Applications | |
| This line is designed and built according to European IEC34 and IEC79 standards. | |
| Features | |
| 60 Hz (1.15 service factor) and 50 Hz (1.0 service factor) | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F2 mounted as standard (F1 convertible) | |
| Stainless Steel Nameplate - Laser etched with High contrast background | |
| Regreasable ball bearings (Frames 160 and up) | |
| Gasketed conduit box | |
| Suitable for WYE/Delta Start (W and Y voltage code motors) | |
Specifications | |
Brand |
WEG |
Catalog Number |
E15036EP3YAX315SMF3W |
Type |
IEC Tru-Metric Motor |
HP |
200 |
KW |
150 |
RPM |
3000 |
Phase |
3 |
C Dimension |
48.976 |
Service Factor |
1 |
Frame |
315S/M |
Enclosure |
TEFC |
Full Load Amps |
253 |
Mount |
Foot Mount |
Voltage |
220-240/380-415//440-460 |
Warranty |
1 Year |
