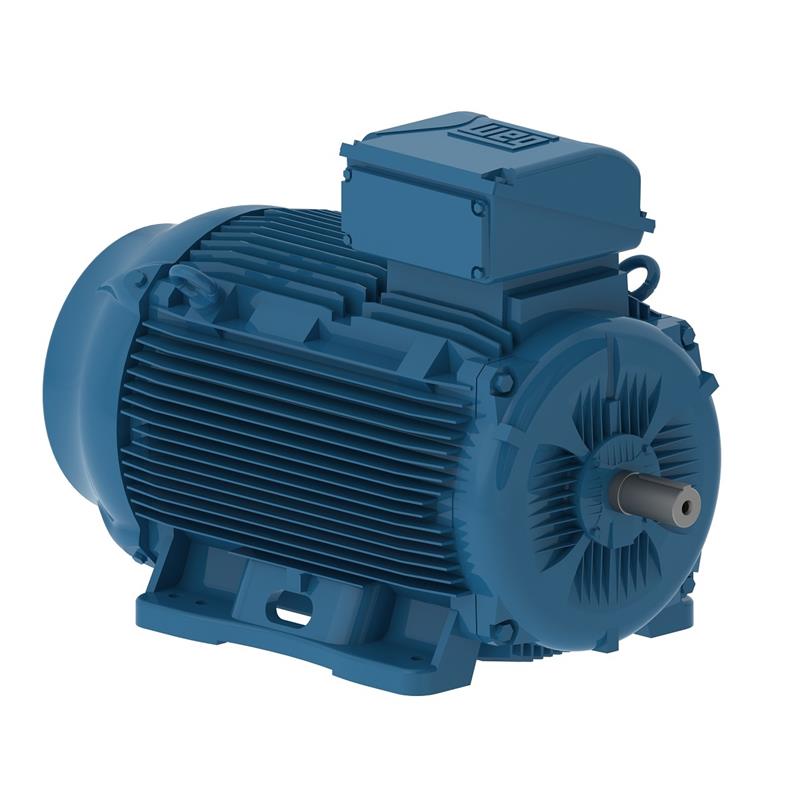

E05536EP3YAX250SMF3W WEG Motor (75 HP, 3000 RPM, 3 Phase, 250S/M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage)
E05536EP3YAX250SMF3W WEG Motor (75 HP, 3000 RPM, 3 Phase, 250S/M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage)
No reviews
SKU:E05536EP3YAX250SMF3W
Regular price
$10,853.28 USD
Regular price
Sale price
$10,853.28 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG E05536EP3YAX250SMF3W, 75 HP, 55 KW, 3000 RPM, 3 Phase, 250S/M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage
| Applications | |
| This line is designed and built according to European IEC34 and IEC79 standards. | |
| Features | |
| 60 Hz (1.15 service factor) and 50 Hz (1.0 service factor) | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F2 mounted as standard (F1 convertible) | |
| Stainless Steel Nameplate - Laser etched with High contrast background | |
| Regreasable ball bearings (Frames 160 and up) | |
| Gasketed conduit box | |
| Suitable for WYE/Delta Start (W and Y voltage code motors) | |
Specifications | |
Brand |
WEG |
Catalog Number |
E05536EP3YAX250SMF3W |
Type |
IEC Tru-Metric Motor |
HP |
75 |
KW |
55 |
RPM |
3000 |
Phase |
3 |
C Dimension |
37.992 |
Service Factor |
1 |
Frame |
250S/M |
Enclosure |
TEFC |
Full Load Amps |
92.5 |
Mount |
Foot Mount |
Voltage |
380-415/660-690//440-460 |
Warranty |
1 Year |
