WEG

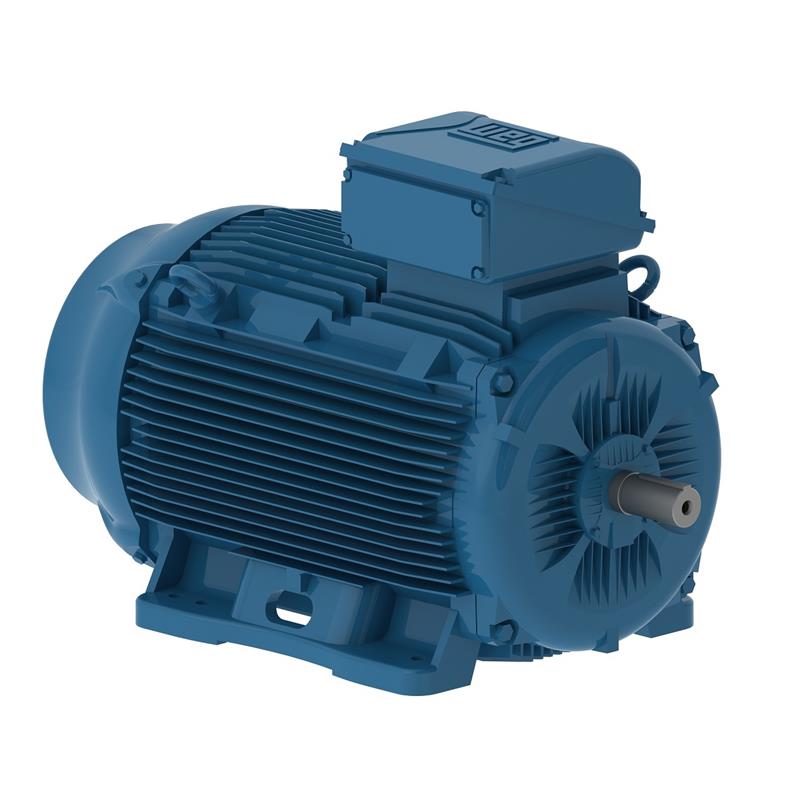

E04518EP3YAX225SMF3W WEG Motor (60 HP, 1500//1800 RPM, 3 Phase, 225S/M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage)

E04518EP3YAX225SMF3W WEG Motor (60 HP, 1500//1800 RPM, 3 Phase, 225S/M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage)

SKU:E04518EP3YAX225SMF3W

Regular price $8,523.46 USD
Regular price Sale price $8,523.46 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG E04518EP3YAX225SMF3W, 60 HP, 45 KW, 1500//1800 RPM, 3 Phase, 225S/M Frame, TEFC Enclosure, 380-415/660-690//440-460 Voltage

Applications
This line is designed and built according to European IEC34 and IEC79 standards.
Features
60 Hz (1.15 service factor) and 50 Hz (1.0 service factor)
Class F insulation (Impregnation Resin and Magnet wire are class H)
F2 mounted as standard (F1 convertible)
Stainless Steel Nameplate - Laser etched with High contrast background
Regreasable ball bearings (Frames 160 and up)
Gasketed conduit box
Suitable for WYE/Delta Start (W and Y voltage code motors)

Specifications

Brand
WEG
Catalog Number
E04518EP3YAX225SMF3W
Type
IEC Tru-Metric Motor
HP
60
KW
45
RPM
1500//1800
Phase
3
C Dimension
34.882
Service Factor
1
Frame
225S/M
Enclosure
TEFC
Full Load Amps
79.5
Mount
Foot Mount
Voltage
380-415/660-690//440-460
Warranty
1 Year
