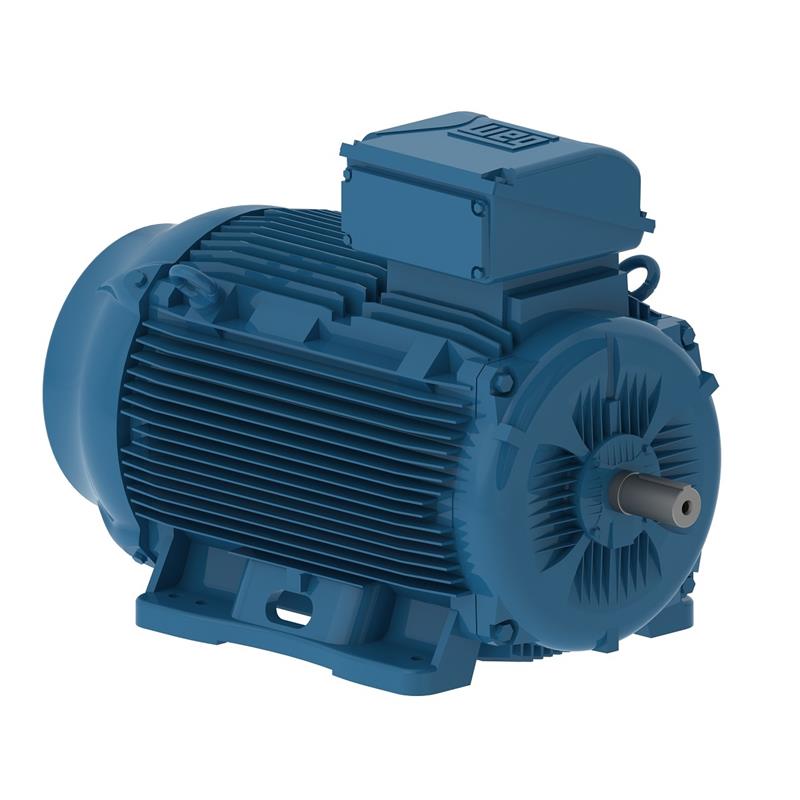

E00236EP3WAX90LF3-W2 WEG Motor (3 HP, 3000 RPM, 3 Phase, 90L Frame, TEFC Enclosure, 220-240/380-415//440-460 Voltage)
E00236EP3WAX90LF3-W2 WEG Motor (3 HP, 3000 RPM, 3 Phase, 90L Frame, TEFC Enclosure, 220-240/380-415//440-460 Voltage)
[COUNT] shoppers are looking at this right now
No reviews
SKU:E00236EP3WAX90LF3-W2
Regular price
$623.00 USD
Regular price
$700.00 USD
Sale price
$623.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG E00236EP3WAX90LF3-W2, 3 HP, 2.2 KW, 3000 RPM, 3 Phase, 90L Frame, TEFC Enclosure, 220-240/380-415//440-460 Voltage
| Applications | |
| This line is designed and built according to European IEC34 and IEC79 standards. | |
| Features | |
| 60 Hz (1.15 service factor) and 50 Hz (1.0 service factor) | |
| Class F insulation (Impregnation Resin and Magnet wire are class H) | |
| F2 mounted as standard (F1 convertible) | |
| Stainless Steel Nameplate - Laser etched with High contrast background | |
| Regreasable ball bearings (Frames 160 and up) | |
| Gasketed conduit box | |
| Suitable for WYE/Delta Start (W and Y voltage code motors) | |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
E00236EP3WAX90LF3-W2
|
|
Type
|
IEC Tru-Metric Motor
|
|
HP
|
3
|
|
KW
|
2.2
|
|
RPM
|
3000
|
|
Phase
|
3
|
|
C Dimension
|
12.953
|
|
Service Factor
|
1
|
|
Frame
|
90L
|
|
Enclosure
|
TEFC
|
|
Full Load Amps
|
4.56
|
|
Mount
|
Foot Mount
|
|
Voltage
|
220-240/380-415//440-460
|
|
Warranty
|
1 Year
|
|
