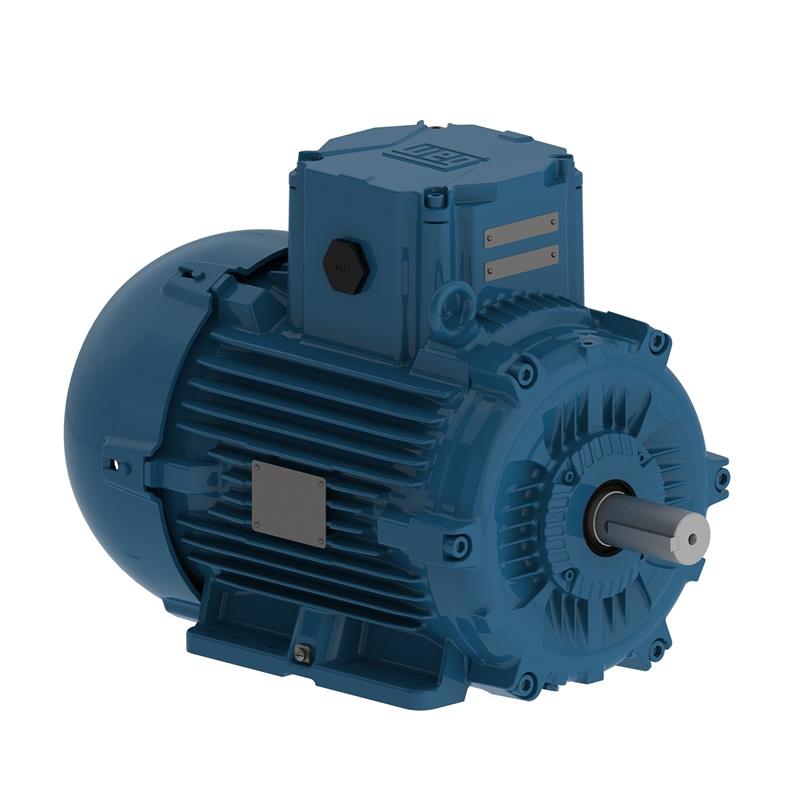

E0.7536XP3WAX90SF3-W WEG ATEX Explosion Proof Motor (1 HP, TEFC)
E0.7536XP3WAX90SF3-W WEG ATEX Explosion Proof Motor (1 HP, TEFC)
SKU:E0.7536XP3WAX90SF3-W
Regular price
$923.33 USD
Regular price
Sale price
$923.33 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
WEG E0 .7536XP3WAX90SF3-W, Explosion Proof Motors Type, ATEX Motors Series, 1 HP, 0 .75 kW, 3000//3600 RPM, 90S/L Frame, 220-240/380-415//440-460 Voltage, TEFC
| Applications | |
| ATEX Motors EXPLOSION PROOF Motors. For additional information, contact our sales team at 631-342-1171 or email Sales@kgpowersystems.com | |
| Features | |
| 50 Hz and and 60 Hz rated (1.00 Service Factor) | |
| Class F insulation (Impregnation Resin and magnet Wire are class H) | |
| F3 mounted as standard | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| Regreasable ball bearings (Frames 225 and up) | |
| Gasketed conduit box | |
| Zone 1 and 2, Groups IIA and IIB, class of temperature T4 | |
| Suitable for WYE/Delta Start | |
| Design N | |
| Conductive plastic fan (frames 63 up to 315) | |
| Aluminum fan (frame 355) | |
Specifications | |
Brand |
WEG |
Catalog Number |
E0.7536XP3WAX90SF3-W |
Type |
Explosion Proof Motors |
Series |
ATEX Motors |
HP |
1 |
kW |
0.75 |
RPM |
3000//3600 |
Frame |
90S/L |
Voltage |
220-240/380-415//440-460 |
Service Factor |
1 .00 |
Enclosure |
TEFC |
FL Amps @ High |
1 .69 |
FL . Eff (%) |
79 .2 |
"C" Dimension (in) |
15 .118 |
Warranty |
1 Year |
Support Documents (pdf) |
