Sta-Rite Pumps

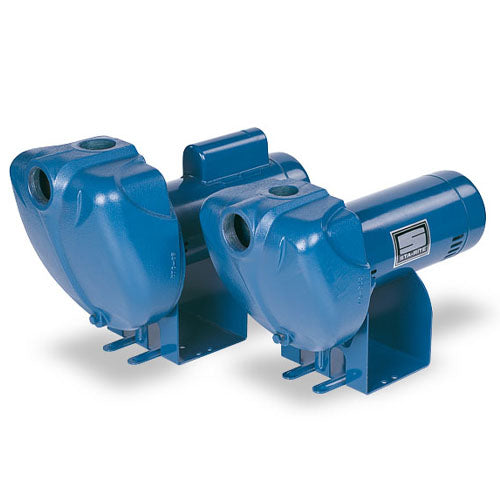

DS3HHG-01 Sta-Rite Self-Priming Centrifugal Pump (2-1/2 HP, 115/230 Volts, 2" Suction)
DS3HHG-01 Sta-Rite Self-Priming Centrifugal Pump (2-1/2 HP, 115/230 Volts, 2" Suction)
SKU:DS3HHG-01
Regular price
$1,399.18 USD
Regular price
$2,872.00 USD
Sale price
$1,399.18 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Sta-Rite DS3HHG, Pro-Storm Self-Priming Centrifugal Pumps Type, DS3 Series, 2-1/2 HP, 115/230 Volts, 2" Suction,
| Applications | |
| Residential irrigation pumpcan be safely operated by timer or other automatic device Contractorsfor dewatering excavation, water transfer and supply Agriculture...seed bed and plot irrigation, stock watering Industrial...sump drainage, marine pumping, liquid transfer and supply operations | |
| Features | |
| NOTE: Pumps installed with a Pro-Source tank require a 100 PSI relief valve. Pumps installed with a conventional tank require a 75 PSI relief valve. Relief valve must be capable of relieving entire flow of pump at relief pressure. | |
| The Pro-Storm models exceed the strict safety requirements of Underwriters Laboratories UL778, and CSA. Required by many state and local codes. | |
| The Pro-Storm models are completely interchangeable with the original | |
| Sta-Rite DS3 Series models, saving costly plumbing change-out dollars and installation headaches! | |
| Rugged Construction: Close-grained cast iron body, specially treated for corrosion resistance. | |
| Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency. | |
| Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser. | |
| Easy Serviceability: Normal wear ing parts are easily accessible for service and replacement, without disturbing piping or mounting. | |
| Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsensures prolonged motor life. | |
| Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced. | |
| Drain Port: Provided for easy winterizing. | |
Specifications | |
Brand |
Sta-Rite Pumps |
Catalog Number |
DS3HHG |
Type |
Pro-Storm Self-Priming Centrifugal Pumps |
Series |
DS3 |
HP |
2-1/2 |
Volts |
115/230 |
Phase |
1 |
Max Load Amps |
26/12 |
Branch Fuse Rating Amp |
35/15 |
Suction |
2" |
Discharge |
2" |
Approx. Wt. Lbs. |
85 |
Body and Seal Plate |
Close-grained cast iron |
Impeller |
Noryl |
Diffuser |
Reinforced polypropylene |
Shaft |
One-piece threaded 300 grade |
Base |
Steel, 10 gauge |
Motor |
2-compartment |
Feet Head @ 20 PSI |
46.2 |
Feet Head @ 30 PSI |
69.3 |
Feet Head @ 40 PSI |
92.4 |
GPM @ 5' Suction lift (20 PSI) |
83 |
GPM @ 10' Suction Lift (20 PSI) |
80 |
GPM @ 15' Suction Lift (20 PSI) |
77 |
GPM @ 20' Suction Lift (20 PSI) |
74 |
GPM @ 25' Suction lift (20 PSI) |
71 |
Pump Length |
18.85" |
Pump Width |
10.00" |
Warranty |
1-Year |
