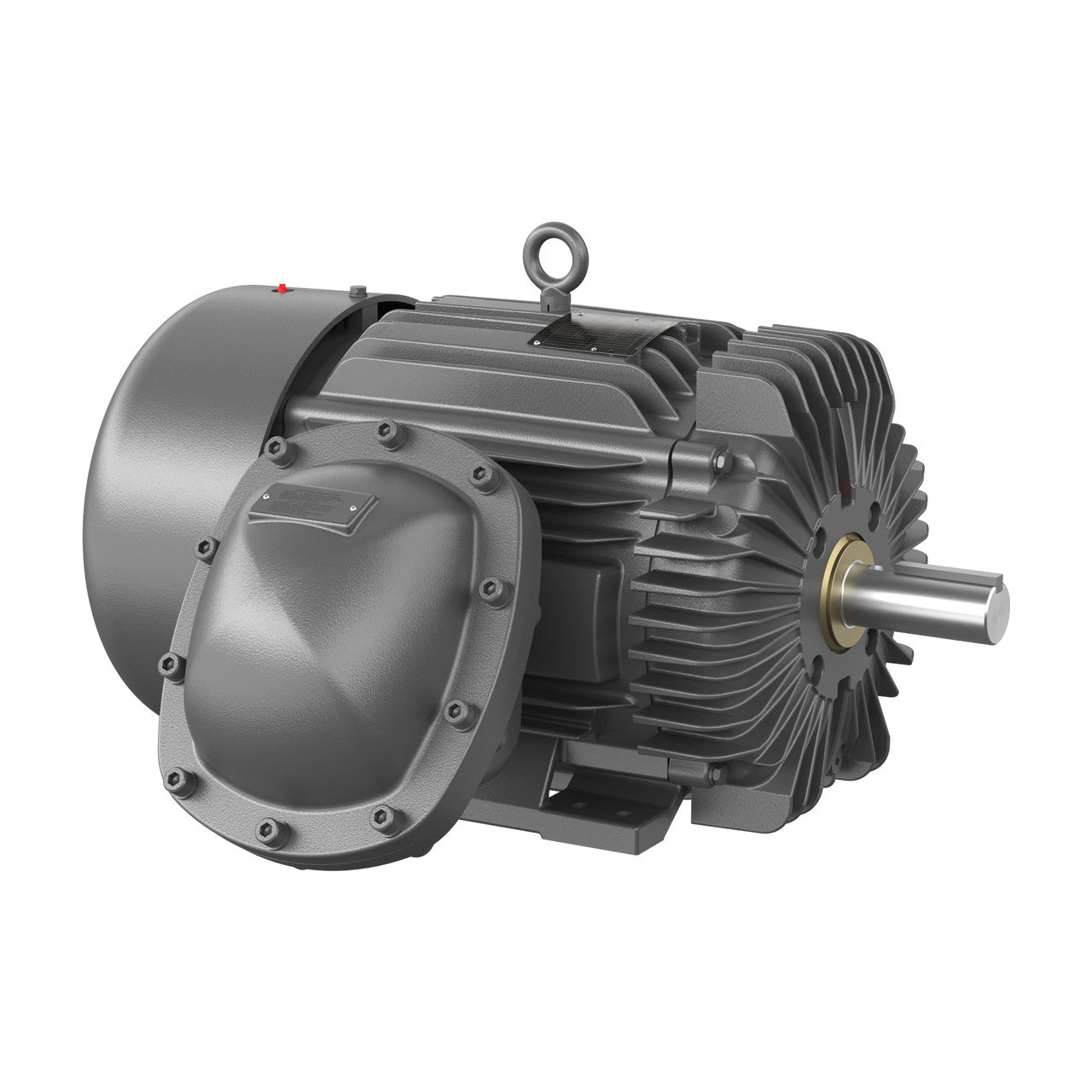

DRX28264T Baldor Explosion Proof Hazardous Location Motor (20 HP, 1180/980 RPM, 3 Phase, 60 Hz, 286T Frame, XPFC Enclosure, F1 Mount)

DRX28264T Baldor Hazardous Location Motor (20 HP, 1180/980 RPM, 3 Phase, 60 Hz, 286T Frame, XPFC Enclosure, F1 Mount)

• Output: 20 HP
• RPM: 1200
• Voltage: 208/230/460V @ 60Hz)
• Full Load Amps: 54.0/50.0/25.0 A
• Enclosure: XPFC (Explosion Proof Fan Cooled)
• Frame: 286T
• Mounting: Rigid base
• Service Factor: 1.00
• Power Factor: 78
• NEMA Design: B
• Efficiency: 91.7
• Bearings: TBD
• Shaft dimensions (dia x len): 1-7/8" x 4-5/8"
• Factory New with manufacturer's warranty
• Catalog Number: DRX28264T
• Enclosure: XPFC
• Frame: 286T
• Frame Material: Iron
• Frequency: 50.00 Hz / 60.00 Hz
• Output @ Frequency: 20.000 HP @ 60 HZ / 15.000 HP @ 50 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1200 RPM @ 60 HZ
• Voltage @ Frequency: 190.0 V @ 50 HZ / 230.0 V @ 60 HZ / 380.0 V @ 50 HZ / 460.0 V @ 60 HZ
• XP Class and Group: CLI GP C;D
• XP Division: Division I
• Agency Approvals: UR / CSA EEV / CSA
• Ambient Temperature: 40 °C
• Auxillary Box: No Auxillary Box
• Auxillary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Constant Torque Speed Range: 6
• Current @ Voltage: 54.000 A @ 208.0 V / 50.000 A @ 230.0 V / 46.000 A @ 190.0 V / 25.000 A @ 460.0 V / 23.000 A @ 380.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 91.7 %
• Electrically Isolated Bearing: Not Electrically Isolated
• Feedback Device: NO FEEDBACK
• High Voltage Full Load Amps: 23.0 a
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Duty
• IP Rating: NONE
• KVA Code: G
• Lifting Lugs: Standard Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Max Speed: 1800 rpm
• Motor Lead Termination: Flying Leads
• Motor Type: 1056M
• Mounting Arrangement: F1
• Number of Poles: 6
• Overall Length: 28.61 IN
• Power Factor: 78
• Product Family: Hazardous Location Motor
• Pulley Face Code: Standard
• Rodent Screen: None
• RoHS Status: ROHS NON-COMPLIANT
• Service Factor: 1.00
• Shaft Diameter: 1.875 IN
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Speed: 1180 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: Normally Closed Thermostat
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
• XP Temp Code: T3C
