U.S. Motors

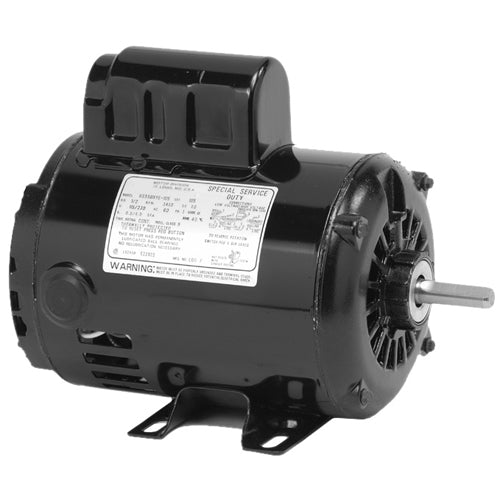

D7C1K U.S. Motors Special Application Motor (7 1/2 HP, 3600 RPM, 230 Voltage)
D7C1K U.S. Motors Special Application Motor (7 1/2 HP, 3600 RPM, 230 Voltage)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D7C1K
Regular price
$653.85 USD
Regular price
$0.00 USD
Sale price
$653.85 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
U.S. Motors D7C1K, 7 1/2 HP, 3600 RPM, 230 Voltage,
| Applications | |
| For belt drive air compressor duty high breakdown torque. | |
| Features | |
| Rigid Welded Base | |
| Continuous Duty | |
| Manual Reset Thermal Overload Protector | |
| ODP Enclosure | |
| Class B Insulation | |
| 40C Ambient | |
| Ball Bearings | |
| Ball Bearings | |
| Rotation - CCW Facing Shaft End, Non-Reversible | |
| Capacitor Start, Capacitor Run | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
D7C1K |
Type |
Special Application Air Compressor Motors |
Catalog Number |
D7C1K |
HP |
7 1/2 |
RPM |
3600 |
Voltage |
230 |
Phase |
Single |
Frame |
184T |
Enclosure |
ODP |
SF |
1.15 |
"C" Dim.(inches) |
16.3 |
Ship Wt. (lbs) |
80 |
Full Load Amps |
30 |
Symbol |
DS-3SP |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
