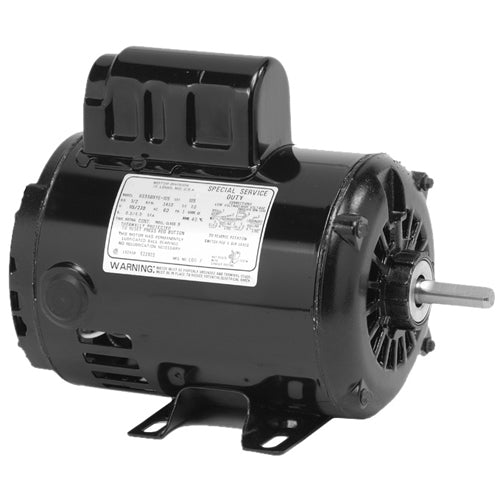

D5CM1K14 U.S. Motors Special Application Motor (5 HP, 3600 RPM, 208-230 Voltage)
D5CM1K14 U.S. Motors Special Application Motor (5 HP, 3600 RPM, 208-230 Voltage)
SKU:D5CM1K14
Regular price
$744.76 USD
Regular price
Sale price
$744.76 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors D5CM1K14, 5 HP, 3600 RPM, 208-230 Voltage,
| Applications | |
| For belt drive air compressor duty high breakdown torque. | |
| Features | |
| Rigid Welded Base | |
| Continuous Duty | |
| Manual Reset Thermal Overload Protector | |
| ODP Enclosure | |
| Class B Insulation | |
| 40C Ambient | |
| Ball Bearings | |
| Ball Bearings | |
| Rotation - CCW Facing Shaft End, Non-Reversible | |
| Capacitor Start, Capacitor Run | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
D5CM1K14 |
Type |
Special Application Air Compressor Motors |
Catalog Number |
D5CM1K14 |
HP |
5 |
RPM |
3600 |
Voltage |
208-230 |
Phase |
Single |
Frame |
56HZ |
Enclosure |
ODP |
SF |
1 |
"C" Dim.(inches) |
14.4 |
Ship Wt. (lbs) |
43 |
Full Load Amps |
22.5-22.0 |
Symbol |
DS-3F |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
