U.S. Motors

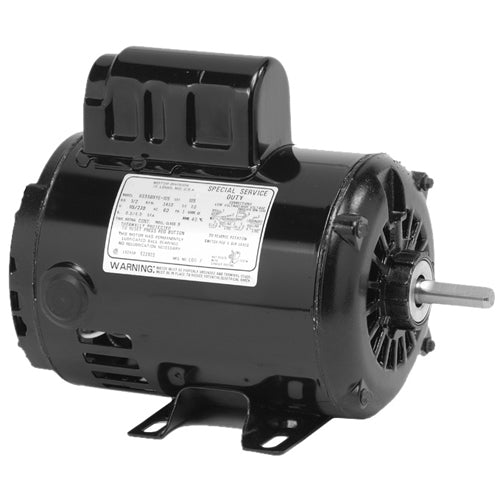

D5C2K Nidec U.S. Motors Special Application Air Compressor Motor (5 HP, 1800 RPM, 230 Voltage, Single Phase, 184T Frame, ODP Enclosure, Rigid Base)
D5C2K Nidec U.S. Motors Special Application Air Compressor Motor (5 HP, 1800 RPM, 230 Voltage, Single Phase, 184T Frame, ODP Enclosure, Rigid Base)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D5C2K
Regular price
$545.85 USD
Regular price
$0.00 USD
Sale price
$545.85 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
U.S. Motors D5C2K, 5 HP, 1800 RPM, 230 Voltage,
| Applications |
| For belt drive air compressor duty high breakdown torque. |
| Features |
| Rigid Welded Base |
| Continuous Duty |
| Manual Reset Thermal Overload Protector |
| ODP Enclosure |
| Class B Insulation |
| 40C Ambient |
| Ball Bearings |
| Ball Bearings |
| Rotation - CCW Facing Shaft End, Non-Reversible |
| Capacitor Start, Capacitor Run |
|
Specifications |
|
|
Brand
|
U.S. Motors
|
|
Catalog Number
|
D5C2K
|
|
Type
|
Special Application Air Compressor Motors
|
|
Catalog Number
|
D5C2K
|
|
HP
|
5
|
|
RPM
|
1800
|
|
Voltage
|
230
|
|
Phase
|
Single
|
|
Frame
|
184T
|
|
Enclosure
|
ODP
|
|
SF
|
1.15
|
|
"C" Dim.(inches)
|
16.3
|
|
Ship Wt. (lbs)
|
75
|
|
Full Load Amps
|
23.5
|
|
Symbol
|
DS-3SP
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
