U.S. Motors

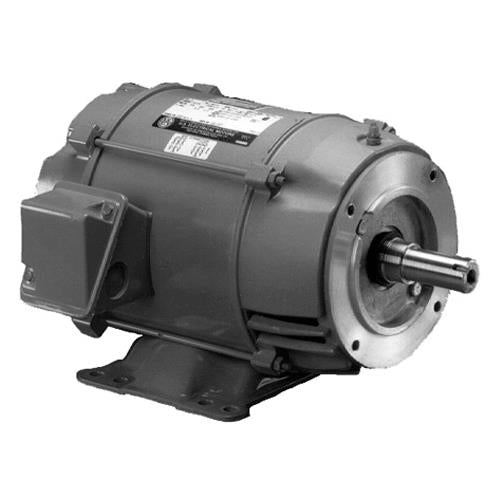

D50P2DC U.S. Motors General Purpose Motor (50 HP, 326TC Frame, Three Phase, 1800 RPM)
D50P2DC U.S. Motors General Purpose Motor (50 HP, 326TC Frame, Three Phase, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:D50P2DC
Regular price
$2,915.92 USD
Regular price
Sale price
$2,915.92 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson D50P2DC, HP: 50, RPM: 1800, Volts: 208-230/460, Motor Mount: Footed, Frame: 326TC, SF: 1.15, Phase: Three, Enclosure: ODP, Fans, Compressors, Pumps
| Applications |
| For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal. |
| Features |
| Class F Insulation, Class B Rise at Service Factor (140 Frame & Larger), Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End, "CE" Mark on Nameplate (140 Frame & Larger), Full 50 & 60 Hertz Operating Data on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz SineWave Power, Full HP @ 50 Hz, Regreasable Bearings 250 Frame & Up, Double Shielded Bearings 48-400, Bearing Cap On 440 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, F1 Assembly Position, Lifting Provisions 210 Frame & Up |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Premium Efficient General Purpose Industrial C-Face Motor |
Model Number |
D50P2DC |
HP |
50 |
RPM |
1800 |
Volts |
208-230/460 |
Motor Mount |
Footed |
Frame |
326TC |
Full Load Amps |
116/58 |
Full Load Efficiency |
94.5 |
Apx. Wt. (lb) |
430 |
SF |
1.15 |
Phase |
Three |
Length |
27 |
Enclosure |
ODP |
Type |
General Purpose Industrial C-Face Motor |
