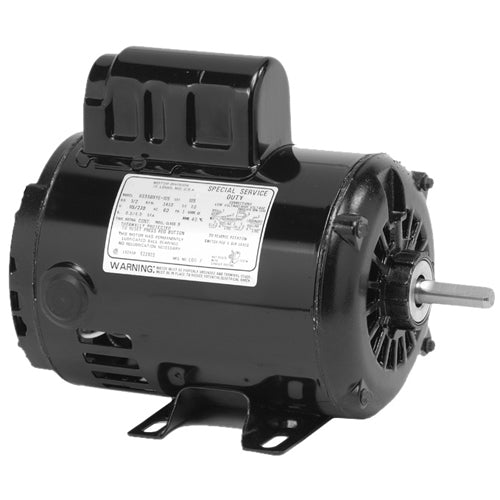

D3CPM1T U.S. Motors Special Application Motor (3 HP, 3600 RPM, 208-230 Voltage)

D3CPM1T U.S. Motors Special Application Motor (3 HP, 3600 RPM, 208-230 Voltage)

👁️ [COUNT] People are currently viewing this product.

D3CPM1T

$402.97 USD
$0.00 USD $402.97 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

U.S. Motors D3CPM1T, 3 HP, 3600 RPM, 208-230 Voltage,

Applications
For belt drive air compressor duty high breakdown torque.
Features
Rigid Welded Base
Continuous Duty
Manual Reset Thermal Overload Protector
ODP Enclosure
Class B Insulation
40C Ambient
Ball Bearings
Ball Bearings
Rotation - CCW Facing Shaft End, Non-Reversible
Capacitor Start, Capacitor Run

Specifications

Brand
U.S. Motors
Catalog Number
D3CPM1T
Type
Special Application Air Compressor Motors
Catalog Number
D3CPM1T
HP
3
RPM
3600
Voltage
208-230
Phase
Single
Frame
56
Enclosure
ODP
SF
1.15
"C" Dim.(inches)
13.2
Ship Wt. (lbs)
42
Full Load Amps
13.2
Symbol
DS-3FMP
Notes
See Support Documents

Support Documents (pdf)
