U.S. Motors

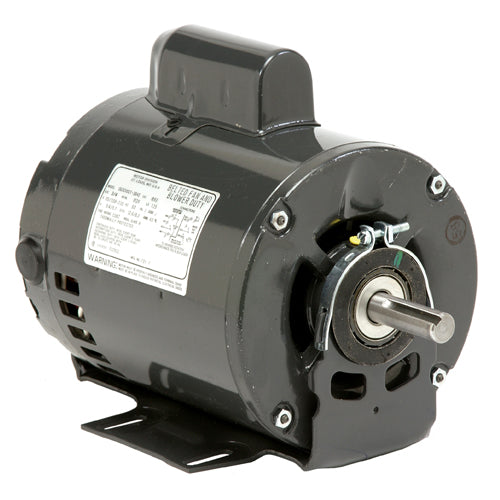

D2CPA2PH9 U.S. Motors General Purpose Resilient Base, Capacitor Start Motor (2 HP, 1 Phase, 115/230 Volt, 56H Frame, ODP Enclosure)
D2CPA2PH9 U.S. Motors General Purpose Resilient Base, Capacitor Start Motor (2 HP, 1 Phase, 115/230 Volt, 56H Frame, ODP Enclosure)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D2CPA2PH9
Regular price
$971.78 USD
Regular price
$0.00 USD
Sale price
$971.78 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
U.S. Motors D2CPA2PH9, General Purpose Resilient Base, Capacitor Start Motors Type, 2 HP, 1 Phase, 115/230 Voltage, 1800 RPM, 56H Frame, Single Speed, ODP Enclosure,
| Applications | |
| For air compressors, pumps, conveyors, blowers and general industrial equipment. | |
| Features | |
| Class A or B Insulation | |
| Reversible Rotation | |
| 40C Ambient | |
| 60 Hertz | |
| Continuous Duty | |
|
Specifications |
|
|
Brand
|
U.S. Motors
|
|
Catalog Number
|
D2CPA2PH9
|
|
Type
|
General Purpose Resilient Base, Capacitor Start Motors
|
|
HP
|
2
|
|
Phase
|
1
|
|
Voltage
|
115/230
|
|
RPM
|
1800
|
|
Frame
|
56H
|
|
Speed
|
Single
|
|
Enclosure
|
ODP
|
|
SF
|
1.15
|
|
"C" Dim.(inches)
|
13.5
|
|
Full Load Amps
|
17.0/8.5
|
|
Hz
|
60
|
|
Duty
|
Continuous
|
|
Rotation
|
Reversible
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
