U.S. Motors

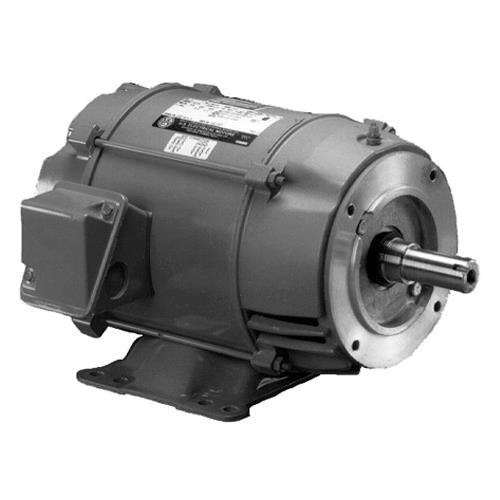

D15P1DC U.S. Motors General Purpose Motor (15 HP, 215TC Frame, Three Phase, 3600 RPM)

D15P1DC U.S. Motors General Purpose Motor (15 HP, 215TC Frame, Three Phase, 3600 RPM)

[COUNT] shoppers are looking at this right now

D15P1DC

$1,395.35 USD
$0.00 USD $1,395.35 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson D15P1DC, HP: 15, RPM: 3600, Volts: 208-230/460, Motor Mount: Footed, Frame: 215TC, SF: 1.15, Phase: Three, Enclosure: ODP, Fans, Compressors, Pumps

Applications
For use on pumps, fans, compressors, material handling and other general purpose applications where contaminants are minimal.
Features
Class F Insulation, Class B Rise at Service Factor (140 Frame & Larger), Rolled Steel Frame 56-320, Cast Iron Frame 360-440, Aluminum End Shields 56-250, Cast Iron End, "CE" Mark on Nameplate (140 Frame & Larger), Full 50 & 60 Hertz Operating Data on Nameplate (140 Frame & Larger), 40C Ambient, NEMA Design B Performance On 60 Hz SineWave Power, Full HP @ 50 Hz, Regreasable Bearings 250 Frame & Up, Double Shielded Bearings 48-400, Bearing Cap On 440 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, F1 Assembly Position, Lifting Provisions 210 Frame & Up

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial C-Face Motor
Model Number
D15P1DC
HP
15
RPM
3600
Volts
208-230/460
Motor Mount
Footed
Frame
215TC
Full Load Amps
40-36/18
Full Load Efficiency
91
Apx. Wt. (lb)
105
SF
1.15
Phase
Three
Length
18
Enclosure
ODP
Type
General Purpose Industrial C-Face Motor
