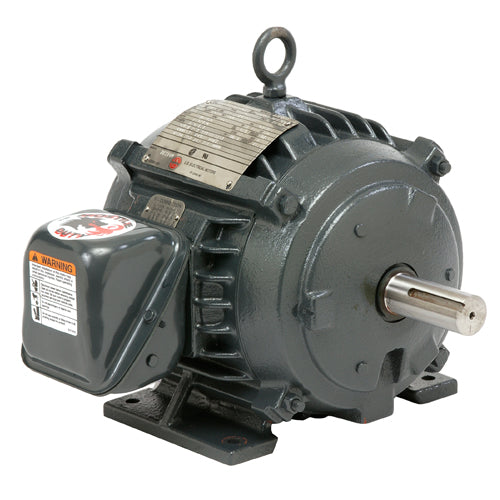

CVW20V2H6 US Motor Cooling Tower Duty Motor (20HP, TEAO, 1775 RPM,
CVW20V2H6 US Motor Cooling Tower Duty Motor (20HP, TEAO, 1775 RPM,
SKU:CVW20V2H6
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Cat # CVW20V2H6
Model_Number: GM15
PRODUCT NAME: 20 HP - TEAO-IP55 - 1775
PHASETYPE: 3_PHASE
MOTOR ENCLOSURE: TEAO-IP55
HORSEPOWER: 20
KILOWATTS: 14.9
POLES: 4
NUMBER SPEEDS: 1
RPM: 1775
HERTZ: 60
VOLTS PRIMARY: 200
VOLTS : 200
FRME : 256
SHAFT CODE: T
MOUNTING: HORZ-FOOTED
ASSEMBLY POSITION: W6
MOTOR TYPE: TCNI
OPPOSITE END BEARING: 6209-2RS-J/C3
SHAFT END BEARING: 6309-2RS-J/C3
AMBIENT: 40
ROTATION: DUAL
SERVICE FACTOR: 1.15
STARTCAPMFD: N\A
SHIPPING WEIGHT: 325
BREAKDOWN TORQUE: 256
BREAKDOWN TORQUE UOM: PERCENT OF FLT
LOCKED ROTOR TORQUE: 281
LOCKED ROTOR TORQUE UOM: PERCENT OF FLT
INSULATION CLASS: F
KVA CODE LETTER: G
LOCKED ROTOR AMPS: 359
NEMA NOMINAL EFFICIENCY: 93
FULL LOAD AMPS PRIMARY: 54
SERVICE FACTOR AMPS PRIMARY: 62
