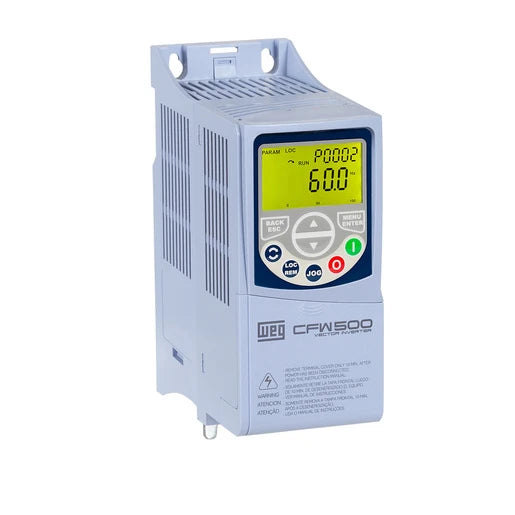

CFW500A01P6S2NB20G2 WEG Drive (.33 HP, 1.6 AMP, 200-240V, Single Phase, IP20 Enclosure, Without Filter)

CFW500A01P6S2NB20G2 WEG Drive (.33 HP, 1.6 AMP, 200-240V, Single Phase, IP20 Enclosure, Without Filter)

With a modern design and power ranging from 0.25 to 175 cv (0.18 to 132 kW), the CFW500 frequency inverter is a high performance variable speed drive, which assists in controlling speed and torque of three-phase induction motors. The device offers sensorless vector, vector with encoder or scalar control modes, permanent magnet motor control, SoftPLC, which adds PLC (Programmable Logic Controller) functions, STO and SS1 Safety Functions, Pump Genius, which brings dedicated pumping functions, and selectable plug-in modules, providing a flexible and optimized solution for any application.

The CFW500 series VFD is a compact cost-effective variable speed motor control for a variety of applications such as pumps, process control, extruders, general machinery and more. Available in IP20, IP66/NEMA4X and NEMA 1 Enclosures (NEMA 1 special order). The IP20 is DIN rail mountable for frame sizes A through C.

The CFW500 series has built-in softPLC support for custom programming. This can often eliminate the need for an external PLC. Caldwell Electric can setup VFD parameters and develop custom PLC programs to fit your needs for a nominal fee.

• Multiple Control Modes:
  Scaler (V/F), VVW (including PM motor), Vector (open and closed loop)
• Heavy-Duty (HD) Rated: 150% Overload for 60 Seconds
• Built-In Motor Protection:
  Protects motor from overload/overcurrent, overvoltage, phase-loss, and more
• Built-in SoftPLC:
  Flexible customization with programmable ladder logic and free WPS software.
• Built-In PID Controller:
  PID mode provides closed loop process control from pressure, flow, or other input.
• Ambient Temp Rating to 50°C (frame-dependent)
• Large variety of communications and I/O Option Modules available: RS-232,RS-485, CANopen, DeviceNet, Profibus, Modbus, Ethernet IP and more
• Conformal-Coated Circuit Boards:
  Extends life of boards in corrosive environments, Class 3C2 / IEC 60721-3-3.
• Available with WEG Pump Genius:
  Simplex and Multiplex pump setups, prevent water hammer, dry-pump protection, and more

SPECIFICATIONS:

Model: CFW500A01P6S2NB20G2
Product Code: 15571885
Input Phase: Single-Phase
Input Voltage: 200-240 VAC
Output Amps: 1.6
Output HP: 0.33
Enclosure: IP20
Dimensions:
L: 7.5 in
W: 3 in
D: 5.9 in
Weight: 1.8 lb
Braking Transistor? None
