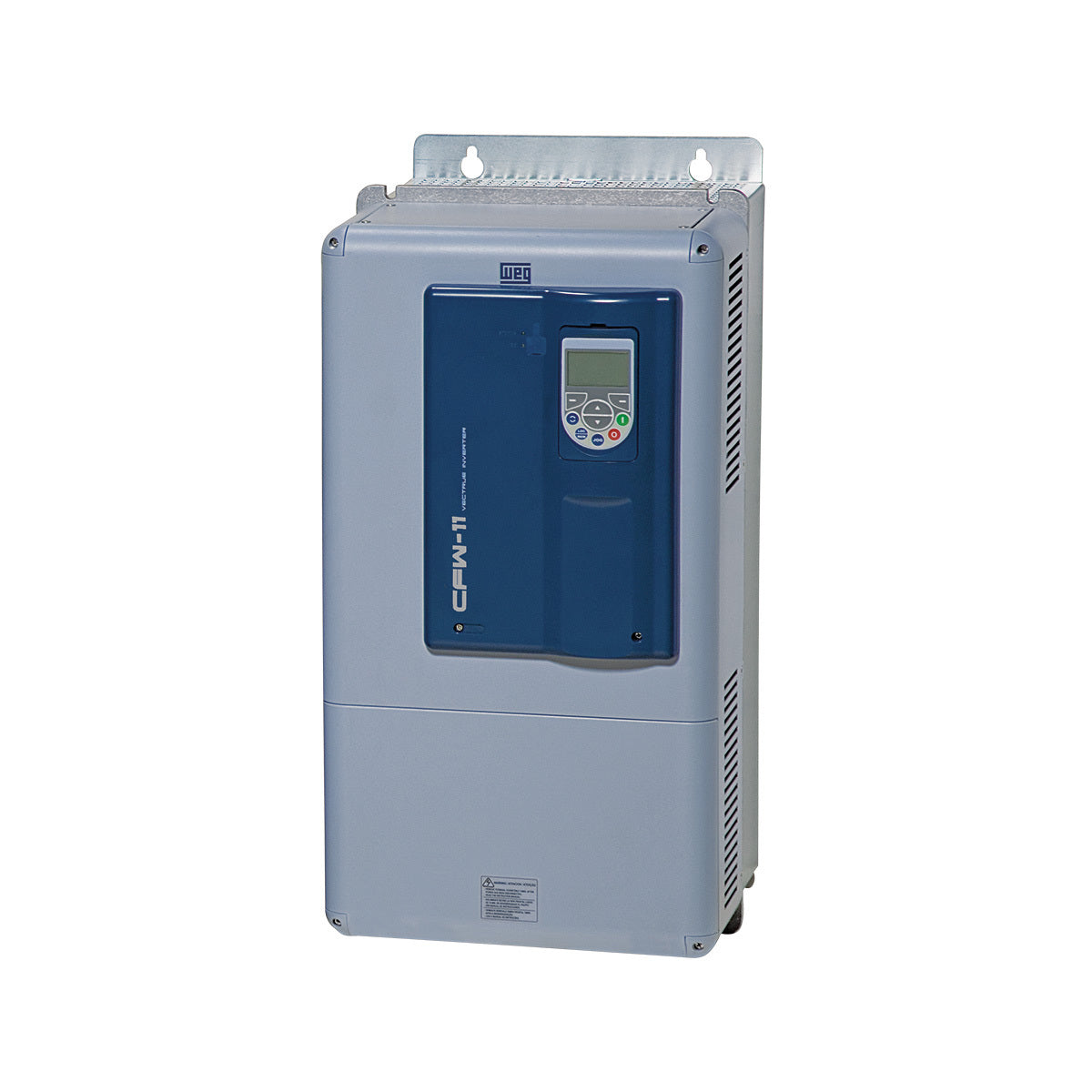

CFW110180T2ON1Z WEG CFW11 Series Variable Frequency Drive (50 HP, NEMA1, 230 VAC, 3 Phase Input)
CFW110180T2ON1Z WEG CFW11 Series Variable Frequency Drive (50 HP, NEMA1, 230 VAC, 3 Phase Input)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CFW110180T2ON1Z
Regular price
$14,889.29 USD
Regular price
$15,125.00 USD
Sale price
$14,889.29 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
WEG CFW110180T2ON1Z, 60 HP, 180 Normal Duty Amps, Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, 50 Heavy Duty HP, 142 Heavy Duty Amps, NEMA 1 , WEG Micro Drive
| Applications | |
| The CFW11 is a new generation of inverters with state-of-the-art technology for three-phase induction motor control. Aimed at increasing the productivity for its customers, this new line offers many innovations. | |
| Features | |
| Plug and play philosophy (connect and use) enables quick and easy installation of accessories and options. | |
| USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware. | |
| Human-Machine Interface (HMI) with backlit graphic display and softkeys, greatly facilitates inverter programming and operation. | |
| DC link inductors (symetrically connected to positive and negative DC link terminals) enable compliance with IEC61000-3-12 standard requirements regarding harmonics, (no need for external line reactance) | |
| Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature. | |
| Automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance. | |
| Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads. | |
| Motor overload protection in compliance with IEC 60947-4-2/UL 508 C. | |
| Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft-PLC via IEC61131-3 programming software) | |
| TRACE / SCOPE function to assist with the start-up and system diagnostic | |
|
Tech Specs |
|
|
Brand
|
WEG
|
|
Model Number
|
CFW110180T2ON1Z
|
|
Type
|
CFW11 Variable Frequency Drive
|
|
Normal Duty HP
|
60
|
|
Normal Duty Amps
|
180
|
|
Input Power Supply
|
Single/Three Phase - 200 - 240V
|
|
Output Motor Volts
|
Three Phase 230V
|
|
Heavy Duty HP
|
50
|
|
Heavy Duty Amps
|
142
|
|
Enclosure
|
NEMA 1
|
|
DIMENSIONS H x W x D
|
26.6 x 13.2 x 14.1
|
|
Frame Size
|
E
|
|
DB
|
NO
|
|
Weight (lbs.)
|
150
|
|
Notes
|
See Drive Literature
|
|
Normal Duty*
|
Normal Duty CT- 110% / 1min
|
|
Heavy Duty*
|
Heavy Duty CT - 150% / 1min
|
|
|
|
|
