WEG Drives

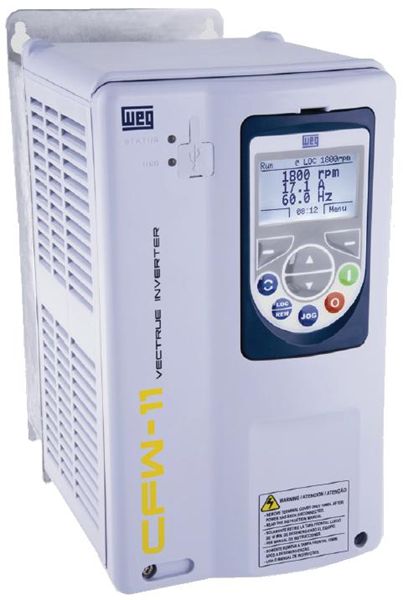

CFW110045T2ON1Z WEG Variable Frequency Drive (Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, NEMA 1 , 15 HP)

CFW110045T2ON1Z WEG Variable Frequency Drive (Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, NEMA 1 , 15 HP)

SKU:CFW110045T2ON1Z

Regular price $2,912.80 USD
Regular price Sale price $2,912.80 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG CFW110045T2ON1Z, 15 HP, 45 Normal Duty Amps, Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, 15 Heavy Duty HP, 36 Heavy Duty Amps, NEMA 1 , WEG Micro Drive
Applications
The CFW11 is a new generation of inverters with state-of-the-art technology for three-phase induction motor control. Aimed at increasing the productivity for its customers, this new line offers many innovations.
Features
Plug and play philosophy (connect and use) enables quick and easy installation of accessories and options.
USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware.
Human-Machine Interface (HMI) with backlit graphic display and softkeys, greatly facilitates inverter programming and operation.
DC link inductors (symetrically connected to positive and negative DC link terminals) enable compliance with IEC61000-3-12 standard requirements regarding harmonics, (no need for external line reactance)
Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature.
Automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance.
Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads.
Motor overload protection in compliance with IEC 60947-4-2/UL 508 C.
Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft-PLC via IEC61131-3 programming software)
TRACE / SCOPE function to assist with the start-up and system diagnostic

Tech Specs

Brand
WEG
Model Number
CFW110045T2ON1Z
Type
CFW11 Variable Frequency Drive
Normal Duty HP
15
Normal Duty Amps
45
Input Power Supply
Single/Three Phase - 200 - 240V
Output Motor Volts
Three Phase 230V
Heavy Duty HP
15
Heavy Duty Amps
36
Enclosure
NEMA 1
DIMENSIONS H x W x D
17.64 x 8.66 x 11.51
Frame Size
C
DB
YES
Weight (lbs.)
55
Notes
See Drive Literature
Normal Duty*
Normal Duty CT- 110% / 1min
Heavy Duty*
Heavy Duty CT - 150% / 1min

Support Documents (pdf)

CFW11 Drive Literature
