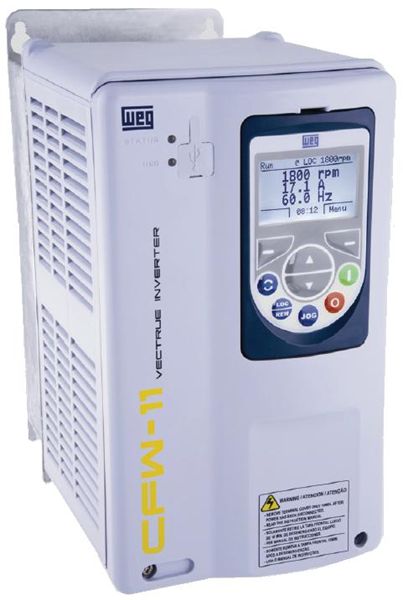

CFW110010T2ON1Z WEG Variable Frequency Drive (Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, NEMA 1 , 3 HP)
CFW110010T2ON1Z WEG Variable Frequency Drive (Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, NEMA 1 , 3 HP)
SKU:CFW110010T2ON1Z
Regular price
$1,353.60 USD
Regular price
Sale price
$1,353.60 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
WEG CFW110010T2ON1Z, 3 HP, 10 Normal Duty Amps, Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, 2 Heavy Duty HP, 8 Heavy Duty Amps, NEMA 1 , WEG Micro Drive
Applications | |
The CFW11 is a new generation of inverters with state-of-the-art technology for three-phase induction motor control. Aimed at increasing the productivity for its customers, this new line offers many innovations. | |
Features | |
Plug and play philosophy (connect and use) enables quick and easy installation of accessories and options. | |
USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware. | |
Human-Machine Interface (HMI) with backlit graphic display and softkeys, greatly facilitates inverter programming and operation. | |
DC link inductors (symetrically connected to positive and negative DC link terminals) enable compliance with IEC61000-3-12 standard requirements regarding harmonics, (no need for external line reactance) | |
Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature. | |
Automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance. | |
Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads. | |
Motor overload protection in compliance with IEC 60947-4-2/UL 508 C. | |
Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft-PLC via IEC61131-3 programming software) | |
TRACE / SCOPE function to assist with the start-up and system diagnostic | |
Tech Specs | |
Brand |
WEG |
Model Number |
CFW110010T2ON1Z |
Type |
CFW11 Variable Frequency Drive |
Normal Duty HP |
3 |
Normal Duty Amps |
10 |
Input Power Supply |
Single/Three Phase - 200 - 240V |
Output Motor Volts |
Three Phase 230V |
Heavy Duty HP |
2 |
Heavy Duty Amps |
8 |
Enclosure |
NEMA 1 |
DIMENSIONS H x W x D |
12.04 x 5.71 x 8.94 |
Frame Size |
A |
DB |
YES |
Weight (lbs.) |
19.9 |
Notes |
See Drive Literature |
Normal Duty* |
Normal Duty CT- 110% / 1min |
Heavy Duty* |
Heavy Duty CT - 150% / 1min |
Support Documents (pdf) | ||||
CFW11 Drive Literature |
