WEG Drives

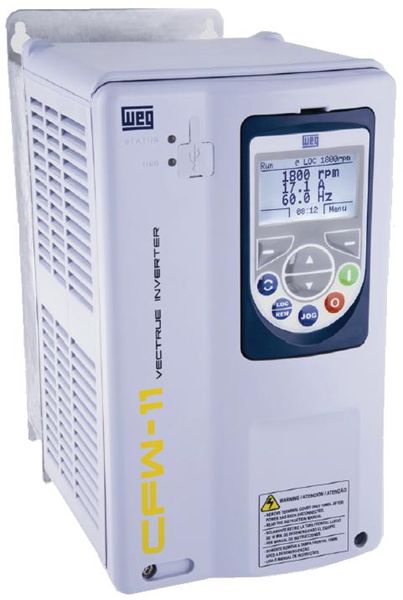

CFW110006B2ON1Z WEG Variable Frequency Drive (Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, NEMA 1 , 1.5 HP)
CFW110006B2ON1Z WEG Variable Frequency Drive (Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, NEMA 1 , 1.5 HP)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:CFW110006B2ON1Z
Regular price
$1,618.38 USD
Regular price
$1,644.00 USD
Sale price
$1,618.38 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG CFW110006B2ON1Z, 1.5 HP, 6 Normal Duty Amps, Single/Three Phase - 200 - 240V Input, Three Phase 230V Output, 1.5 Heavy Duty HP, 5 Heavy Duty Amps, NEMA 1 , WEG Micro Drive
| Applications | |
| The CFW11 is a new generation of inverters with state-of-the-art technology for three-phase induction motor control. Aimed at increasing the productivity for its customers, this new line offers many innovations. | |
| Features | |
| Plug and play philosophy (connect and use) enables quick and easy installation of accessories and options. | |
| USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware. | |
| Human-Machine Interface (HMI) with backlit graphic display and softkeys, greatly facilitates inverter programming and operation. | |
| DC link inductors (symetrically connected to positive and negative DC link terminals) enable compliance with IEC61000-3-12 standard requirements regarding harmonics, (no need for external line reactance) | |
| Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature. | |
| Automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance. | |
| Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads. | |
| Motor overload protection in compliance with IEC 60947-4-2/UL 508 C. | |
| Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft-PLC via IEC61131-3 programming software) | |
| TRACE / SCOPE function to assist with the start-up and system diagnostic | |
Tech Specs | |
Brand |
WEG |
Model Number |
CFW110006B2ON1Z |
Type |
CFW11 Variable Frequency Drive |
Normal Duty HP |
1.5 |
Normal Duty Amps |
6 |
Input Power Supply |
Single/Three Phase - 200 - 240V |
Output Motor Volts |
Three Phase 230V |
Heavy Duty HP |
1.5 |
Heavy Duty Amps |
5 |
Enclosure |
NEMA 1 |
DIMENSIONS H x W x D |
12.04 x 5.71 x 8.94 |
Frame Size |
A |
DB |
YES |
Weight (lbs.) |
19.9 |
Notes |
See Drive Literature |
Normal Duty* |
Normal Duty CT- 110% / 1min |
Heavy Duty* |
Heavy Duty CT - 150% / 1min |
Support Documents (pdf) | ||||
| CFW11 Drive Literature | ||||
