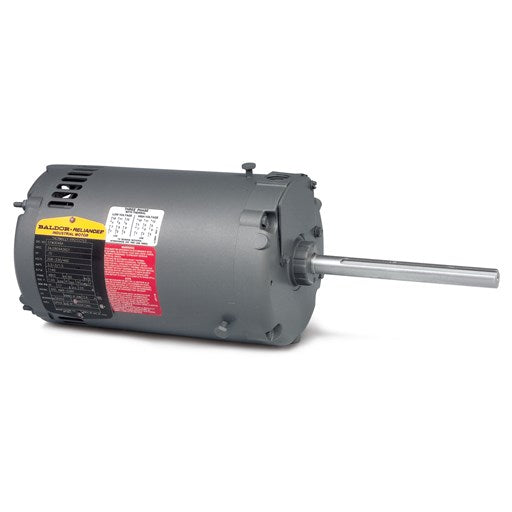

CFM3036A Baldor Three Phase Condenser Fan (HVAC) Motor, ODP, 48YZ Frame, "Belly Band" Round Body (1/2 HP, 1200 RPM)

Baldor Motor CFM3036A, HP: 1/2, RPM: 1200, Volts: 208-230/460, NEMA Frame : 48YZ, "C" Dim : 14.29, Full Load Amps : 1.2, Enclosure: ODP, Air Conditioning Units , Refrigeration Condenser Units, Three Phase

Applications

Designed specifically for use on commercial refrigeration condenserunits and air conditioning units.

Features

Corrosion resistant finish, ball bearings, dynamically balanced for quietoperation. Automatic reset thermal. Shaft 6 long - keyway and flat are 90 apart.Reconnectable leads in pulley endplate.

Tech Specs.
Brand	Baldor HVAC Motor
Model Number	CFM3036A
HP	1/2
RPM	1200
Volts	208-230/460
"C" Dim	14.29
NEMA Frame	48YZ
Full Load Amps	1.2
Full Load Efficiency	72
Apx. Wt. (lb)	25
EISA Status	C
Phase	Three Phase
Motor Mount	"Belly Band" Round Body
Enclosure	ODP
Type	Condenser Fan
