Baldor

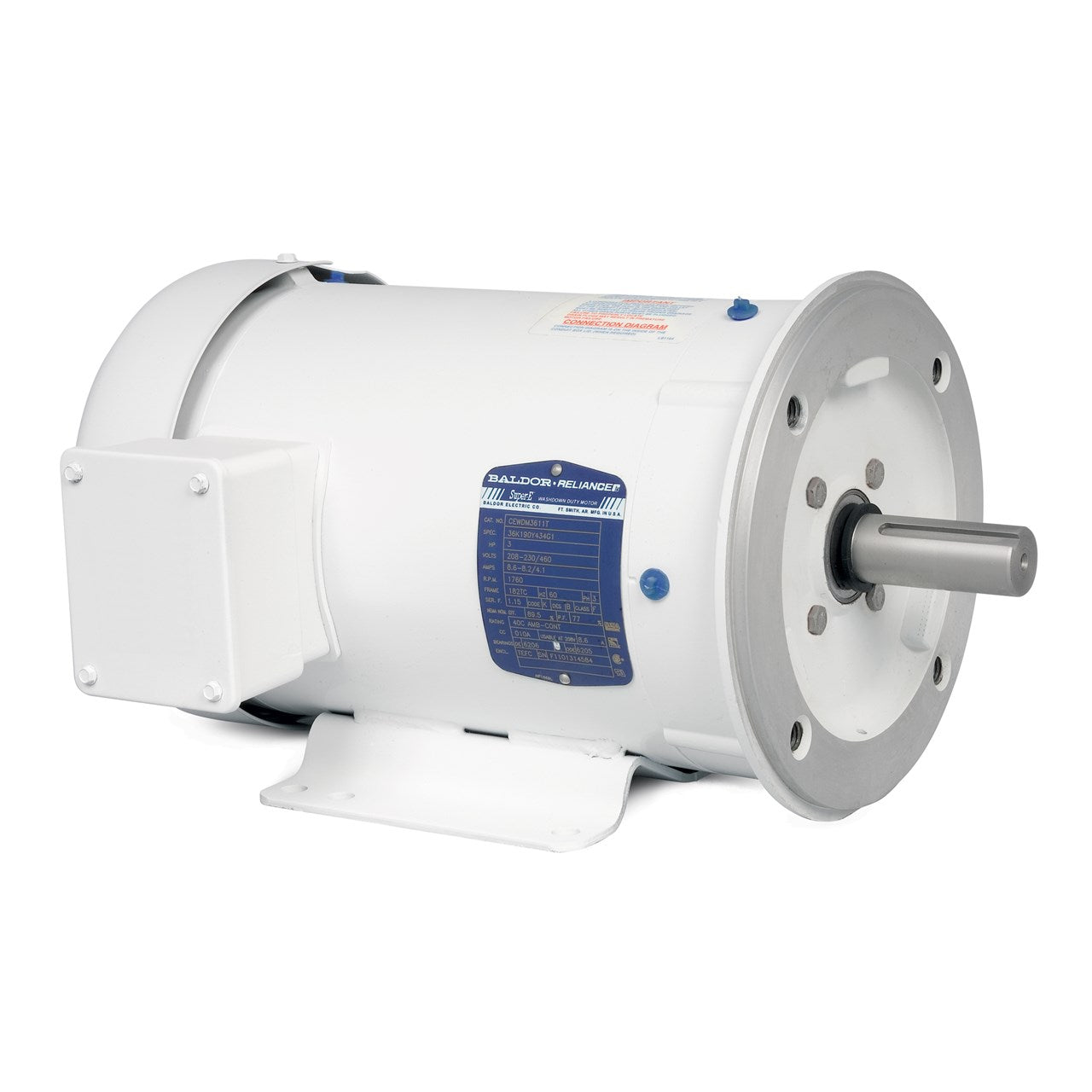

CEWDM3714T Baldor Premium Efficient Washdown Duty Motor, C-Face, Three Phase, Totally Enclosed (10 HP, 1800 RPM)
CEWDM3714T Baldor Premium Efficient Washdown Duty Motor, C-Face, Three Phase, Totally Enclosed (10 HP, 1800 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:CEWDM3714T
Regular price
$3,112.55 USD
Regular price
$4,331.00 USD
Sale price
$3,112.55 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor Motor CEWDM3714T, HP: 10, RPM: 1800, Volts: 230/460, NEMA Frame : 215TC, "C" Dim : 21.27, Full Load Amps : 12.5, Enclosure : TEFC
| Applications |
| Food processing and other applications where motors receive washdown on a regular basis. |
| Features |
| 300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end; slinger on ODE of TEFC motors. Stainless steel shaft extension. Electrostatically applied epoxy finish. Class F insulation. Super-E motors have NEMA Premium efficiency and 3 year warranty. |
|
Tech Specs. |
|
|
Brand
|
Baldor Premium Efficient Super-E Motor
|
|
Model Number
|
CEWDM3714T
|
|
HP
|
10
|
|
RPM
|
1800
|
|
Volts
|
230/460
|
|
"C" Dim
|
21.27
|
|
NEMA Frame
|
215TC
|
|
Full Load Amps
|
12.5
|
|
Full Load Efficiency
|
91.7
|
|
Apx. Wt. (lb)
|
158
|
|
EISA Status
|
A
|
|
Insulation
|
Class F
|
|
Phase
|
3
|
|
Motor Mount
|
Foot Mounted
|
|
Enclosure
|
TEFC
|
|
Brand
|
Baldor Premium Efficient Super-E Motor
|
|
Type
|
Washdown Duty
|
|
Warranty
|
3 Year Warranty
|
|
|
|
|
|
|
