Baldor

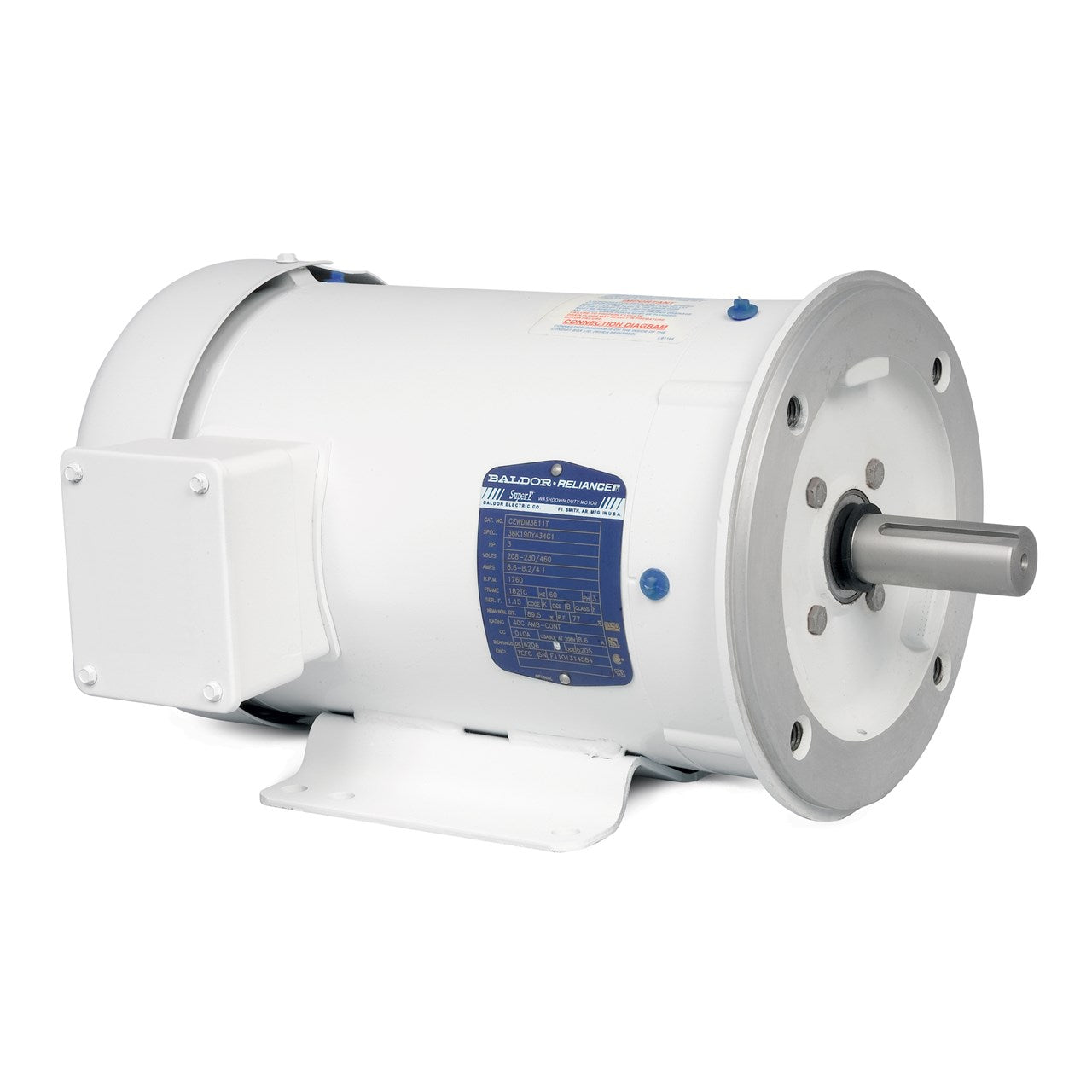

CEWDM3615T Baldor Premium Efficient Washdown Duty Motor, C-Face, Three Phase, Totally Enclosed (5 HP, 1800 RPM)

CEWDM3615T Baldor Premium Efficient Washdown Duty Motor, C-Face, Three Phase, Totally Enclosed (5 HP, 1800 RPM)

CEWDM3615T

$1,829.79 USD
$1,829.79 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Baldor Motor CEWDM3615T, HP: 5, RPM: 1800, Volts: 230/460, NEMA Frame : 184TC, "C" Dim : 18.04, Full Load Amps : 6.5, Enclosure : TEFC

Applications
Food processing and other applications where motors receive washdown on a regular basis.
Features
300 series stainless steel hardware, moisture sealant on bolt heads,between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end; slinger on ODE of TEFC motors. Stainless steel shaft extension. Electrostatically applied epoxy finish. Class F insulation. Super-E motors have NEMA Premium efficiency and 3 year warranty.

Tech Specs.

Brand
Baldor Premium Efficient Super-E Motor
Model Number
CEWDM3615T
HP
5
RPM
1800
Volts
230/460
"C" Dim
18.04
NEMA Frame
184TC
Full Load Amps
6.5
Full Load Efficiency
89.5
Apx. Wt. (lb)
96
EISA Status
A
Insulation
Class F
Phase
3
Motor Mount
Foot Mounted
Enclosure
TEFC
Brand
Baldor Premium Efficient Super-E Motor
Type
Washdown Duty
Warranty
3 Year Warranty
