Baldor

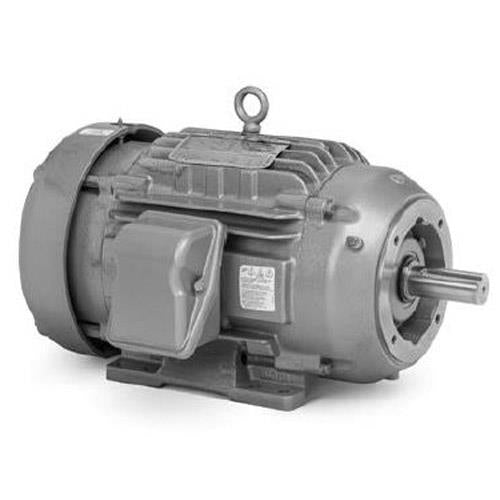

CECR9754T Baldor Baldor Crusher Motor (75 HP, 230/460 Volts, 1800 RPM, 365TC Frame )

CECR9754T Baldor Baldor Crusher Motor (75 HP, 230/460 Volts, 1800 RPM, 365TC Frame )

CECR9754T

$10,125.50 USD
$10,125.50 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Baldor CECR9754T, SEVERE DUTY MOTORS , 75 HP, 230/460 Volts, 1800 RPM, 365TC Frame,

Applications
Cement, Aggregate, Above ground mining, Bulk material handling, Crushers, belt, conveyors and screens
Features
High torque NEMA Design A, exceeds NEMA Design C torques
1.25 SF up to 100 Hp, 1.15 SF over 100 Hp
Oversized ball bearings up to 50 Hp, ball and roller bearing designs 60 Hp and up. 586/7/8 frames include oversized roller bearing on DE.
586/7/8 frames include oversized, insulated ODE bearing and oversized 4.375 shaft.
IP55 for frame sizes up to L449. IP66 for 586/7/8 frames.
Embossed raised letter, 304 stainless steel nameplates
Inverter ready nameplate
TR catalog numbers are standard roller bearing

Specifications

Brand
Baldor
Catalog Number
CECR9754T
Type
Baldor Crusher Motors
Series
SEVERE DUTY MOTORS
Model
CECR9754T
HP
75
Volts
230/460
RPM
1800
Frame
365TC
C Dim.
33.48
Approx. Weight (lbs)
982
Full Load Efficiency
95.4
Full Load Amps
87.5
Phase
Three
Enclosure
TEFC
Mount
Foot Mounted
Motor Standards
NEMA
Pulley Face Code
C-Face
Shaft Rotation
Reversible

Support Documents (pdf)
