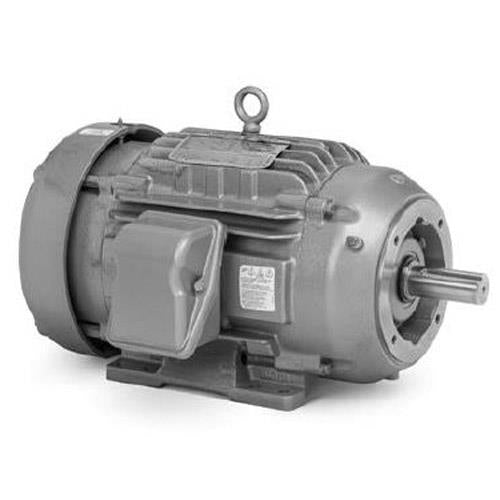

CECR9604T Baldor Baldor Crusher Motor (60 HP, 230/460 Volts, 1800 RPM, 364TC Frame )

CECR9604T Baldor Baldor Crusher Motor (60 HP, 230/460 Volts, 1800 RPM, 364TC Frame )

[COUNT] shoppers are looking at this right now

CECR9604T

$12,957.37 USD
$15,524.00 USD $12,957.37 USD
Sale Sold out
Shipping calculated at checkout.

Baldor CECR9604T, SEVERE DUTY MOTORS , 60 HP, 230/460 Volts, 1800 RPM, 364TC Frame,

Applications
Cement, Aggregate, Above ground mining, Bulk material handling, Crushers, belt, conveyors and screens
Features
High torque NEMA Design A, exceeds NEMA Design C torques
1.25 SF up to 100 Hp, 1.15 SF over 100 Hp
Oversized ball bearings up to 50 Hp, ball and roller bearing designs 60 Hp and up. 586/7/8 frames include oversized roller bearing on DE.
586/7/8 frames include oversized, insulated ODE bearing and oversized 4.375 shaft.
IP55 for frame sizes up to L449. IP66 for 586/7/8 frames.
Embossed raised letter, 304 stainless steel nameplates
Inverter ready nameplate
TR catalog numbers are standard roller bearing

Specifications

Brand
Baldor
Catalog Number
CECR9604T
Type
Baldor Crusher Motors
Series
SEVERE DUTY MOTORS
Model
CECR9604T
HP
60
Volts
230/460
RPM
1800
Frame
364TC
C Dim.
33.48
Approx. Weight (lbs)
977
Full Load Efficiency
95
Full Load Amps
70
Phase
Three
Enclosure
TEFC
Mount
Foot Mounted
Motor Standards
NEMA
Pulley Face Code
C-Face
Shaft Rotation
Reversible
