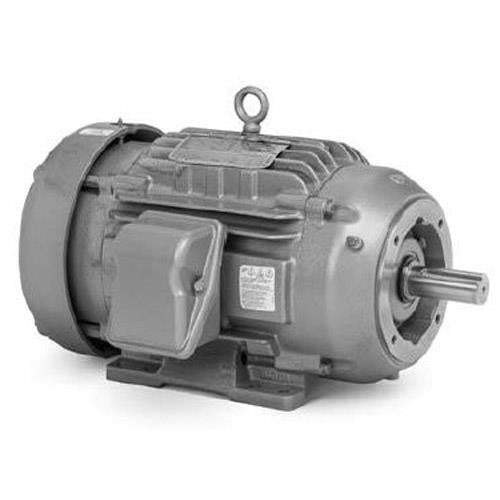

CECR9404T Baldor Baldor Crusher Motor (40 HP, 230/460 Volts, 1800 RPM, 324TC Frame )

CECR9404T Baldor Baldor Crusher Motor (40 HP, 230/460 Volts, 1800 RPM, 324TC Frame )

👁️ [COUNT] People are currently viewing this product.

CECR9404T

$6,305.91 USD
$7,555.00 USD $6,305.91 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Baldor CECR9404T, SEVERE DUTY MOTORS , 40 HP, 230/460 Volts, 1800 RPM, 324TC Frame,

Applications
Cement, Aggregate, Above ground mining, Bulk material handling, Crushers, belt, conveyors and screens
Features
High torque NEMA Design A, exceeds NEMA Design C torques
1.25 SF up to 100 Hp, 1.15 SF over 100 Hp
Oversized ball bearings up to 50 Hp, ball and roller bearing designs 60 Hp and up. 586/7/8 frames include oversized roller bearing on DE.
586/7/8 frames include oversized, insulated ODE bearing and oversized 4.375 shaft.
IP55 for frame sizes up to L449. IP66 for 586/7/8 frames.
Embossed raised letter, 304 stainless steel nameplates
Inverter ready nameplate
TR catalog numbers are standard roller bearing

Specifications

Brand
Baldor
Catalog Number
CECR9404T
Type
Baldor Crusher Motors
Series
SEVERE DUTY MOTORS
Model
CECR9404T
HP
40
Volts
230/460
RPM
1800
Frame
324TC
C Dim.
30.16
Approx. Weight (lbs)
650
Full Load Efficiency
94.1
Full Load Amps
49
Phase
Three
Enclosure
TEFC
Mount
Foot Mounted
Motor Standards
NEMA
Pulley Face Code
C-Face
Shaft Rotation
Reversible
