Baldor

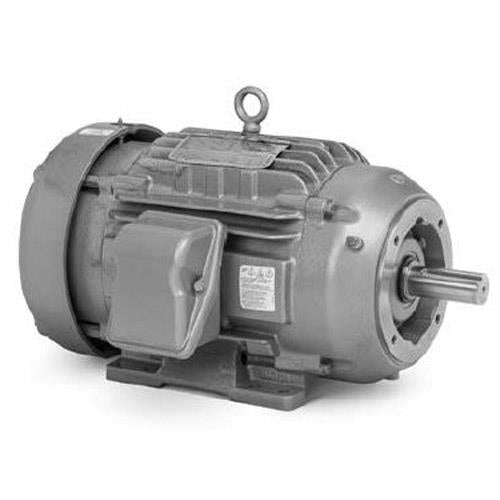

CECR9154T Baldor Baldor Crusher Motor (15 HP, 230/460 Volts, 1800 RPM, 254TC Frame )

CECR9154T Baldor Baldor Crusher Motor (15 HP, 230/460 Volts, 1800 RPM, 254TC Frame )

[COUNT] shoppers are looking at this right now

CECR9154T

$3,013.98 USD
$3,611.00 USD $3,013.98 USD
Sale Sold out
Shipping calculated at checkout.

Baldor CECR9154T, SEVERE DUTY MOTORS , 15 HP, 230/460 Volts, 1800 RPM, 254TC Frame,

Applications
Cement, Aggregate, Above ground mining, Bulk material handling, Crushers, belt, conveyors and screens
Features
High torque NEMA Design A, exceeds NEMA Design C torques
1.25 SF up to 100 Hp, 1.15 SF over 100 Hp
Oversized ball bearings up to 50 Hp, ball and roller bearing designs 60 Hp and up. 586/7/8 frames include oversized roller bearing on DE.
586/7/8 frames include oversized, insulated ODE bearing and oversized 4.375 shaft.
IP55 for frame sizes up to L449. IP66 for 586/7/8 frames.
Embossed raised letter, 304 stainless steel nameplates
Inverter ready nameplate
TR catalog numbers are standard roller bearing

Specifications

Brand
Baldor
Catalog Number
CECR9154T
Type
Baldor Crusher Motors
Series
SEVERE DUTY MOTORS
Model
CECR9154T
HP
15
Volts
230/460
RPM
1800
Frame
254TC
C Dim.
25.28
Approx. Weight (lbs)
286
Full Load Efficiency
92.4
Full Load Amps
18.6
Phase
Three
Enclosure
TEFC
Mount
Foot Mounted
Motor Standards
NEMA
Pulley Face Code
C-Face
Shaft Rotation
Reversible

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
