Baldor

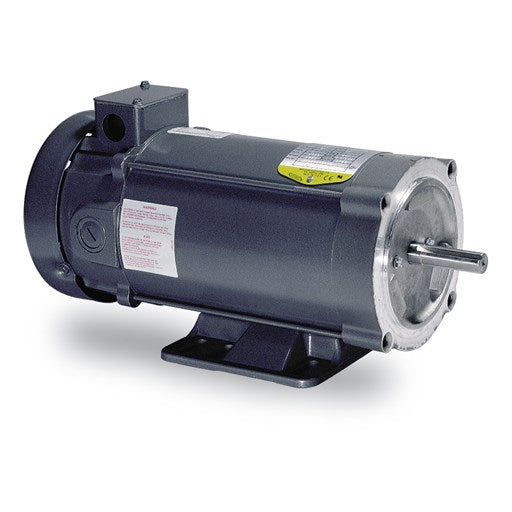

CD6203 Baldor Shunt Wound SCR Drive Motor (3 HP, 180 VDC, TEFC , 1750 RPM)

CD6203 Baldor Shunt Wound SCR Drive Motor (3 HP, 180 VDC, TEFC , 1750 RPM)

CD6203

$3,157.18 USD
$3,157.18 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Baldor Motor CD6203, HP: 3, RPM: 1750, VDC: 180, Voltage DC Field: 200/100, Full Load Amps. Arm.: 14.7, Full Load Amps. Field: .6/1.2, NEMA Frame: 184TC, : TEFC,

Applications
Conveyors, printing, textile equipment, machine tools(adjustable speeds with constant torque).
Features
TEFC enclosure, shunt wound, Class F insulation. Designed foruse with NEMA TYPE K SCR control, 20:1 constant torque speed range(except where noted). NEMA C-face and removable base (1) (except onexplosion proof models). NEMA 182 and larger have a thermostat (normallyclosed contracts) on the field winding.

Tech Specs

Brand
Baldor
Model Number
CD6203
HP
3
Base Speed
1750
Voltage DC Arm.
180
Voltage DC Field
200/100
Full Load Amps. Arm.
14.7
Full Load Amps. Field
.6/1.2
NEMA Frame
184TC
Apx. Wt. (lb)
135
Enclosure
TEFC
Type
Shunt Wound SCR Drive Motor
