Baldor

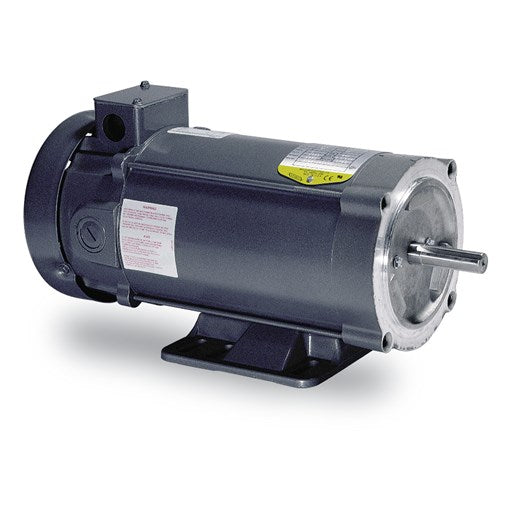

CD5319 Baldor Shunt Wound SCR Drive Motor (1 HP, 90 VDC, TEFC , 1750 RPM)

CD5319 Baldor Shunt Wound SCR Drive Motor (1 HP, 90 VDC, TEFC , 1750 RPM)

[COUNT] shoppers are looking at this right now

CD5319

$2,052.35 USD
$2,587.00 USD $2,052.35 USD
Sale Sold out
Shipping calculated at checkout.

Baldor Motor CD5319, HP: 1, RPM: 1750, VDC: 90, Voltage DC Field: 100/50, Full Load Amps. Arm.: 10, Full Load Amps. Field: .6/1.2, NEMA Frame: 56C, : TEFC,

Applications
Conveyors, printing, textile equipment, machine tools(adjustable speeds with constant torque).
Features
TEFC enclosure, shunt wound, Class F insulation. Designed foruse with NEMA TYPE K SCR control, 20:1 constant torque speed range(except where noted). NEMA C-face and removable base (1) (except onexplosion proof models). NEMA 182 and larger have a thermostat (normallyclosed contracts) on the field winding.

Tech Specs

Brand
Baldor
Model Number
CD5319
HP
1
Base Speed
1750
Voltage DC Arm.
90
Voltage DC Field
100/50
Full Load Amps. Arm.
10
Full Load Amps. Field
.6/1.2
NEMA Frame
56C
Apx. Wt. (lb)
52
Enclosure
TEFC
Type
Shunt Wound SCR Drive Motor
