Baldor

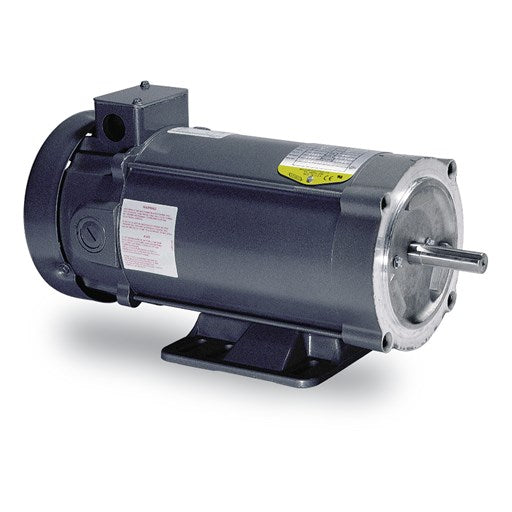

CD3450 Baldor Shunt Wound SCR Drive Motor (1/2 HP, 90 VDC, TEFC , 1750 RPM)
CD3450 Baldor Shunt Wound SCR Drive Motor (1/2 HP, 90 VDC, TEFC , 1750 RPM)
[COUNT] shoppers are looking at this right now
SKU:CD3450
Regular price
$1,169.37 USD
Regular price
$1,474.00 USD
Sale price
$1,169.37 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor Motor CD3450, HP: 1/2, RPM: 1750, VDC: 90, Voltage DC Field: 100/50, Full Load Amps. Arm.: 5.7, Full Load Amps. Field: .5/1, NEMA Frame: 56C, : TEFC,
| Applications |
| Conveyors, printing, textile equipment, machine tools(adjustable speeds with constant torque). |
| Features |
| TEFC enclosure, shunt wound, Class F insulation. Designed foruse with NEMA TYPE K SCR control, 20:1 constant torque speed range(except where noted). NEMA C-face and removable base (1) (except onexplosion proof models). NEMA 182 and larger have a thermostat (normallyclosed contracts) on the field winding. |
Tech Specs | |
Brand |
Baldor |
Model Number |
CD3450 |
HP |
1/2 |
Base Speed |
1750 |
Voltage DC Arm. |
90 |
Voltage DC Field |
100/50 |
Full Load Amps. Arm. |
5.7 |
Full Load Amps. Field |
.5/1 |
NEMA Frame |
56C |
Apx. Wt. (lb) |
29 |
Enclosure |
TEFC |
Type |
Shunt Wound SCR Drive Motor |
